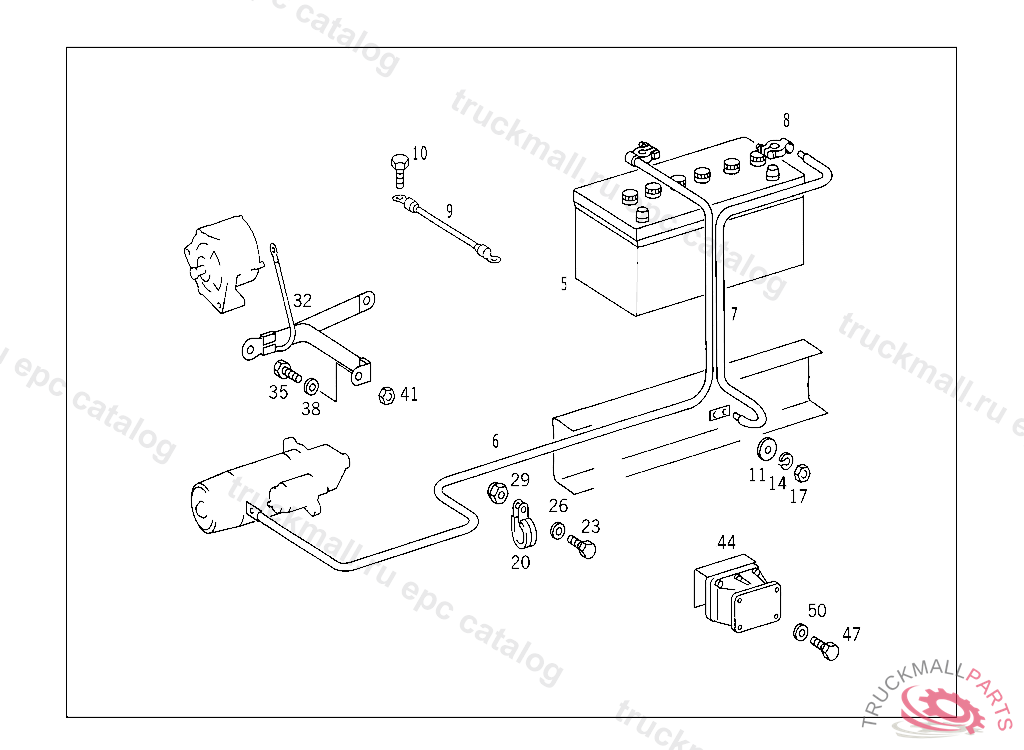

Поз.
Артикул
Описание
5
BATTERY LESS ACID 12 V,90 AH
6
POSITIVE CABLE FROM BATTERY TO STARTING MOTOR,PB004444
7
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
8
CLAMPING PIECE BATTERY CABLE MOUNTING IN BATTERY COMPARTMENT
9
NEG. CABLE FROM FRAME CROSS MEMBER TO CAB
10
SCREW CONNECTOR
11
WASHER BRACKET TO COVERING
11
WASHER , Replaced By: N009021010209
14
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
17
NUT BATTERY CABLE
17
NUT BRACKET TO RETARDER
20
CLAMP POS. CABLE
20
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
23
SCREW BRACKET TO EXHAUST PIPE BRACKET
23
SCREW LINES TO BRACKET
26
WASHER TRAILER PLUG SOCKET TO BRACKET
26
WASHER EXHAUST MUFFLER TO STRAP
29
NUT BRACKET TO SIDE MEMBER
32
GROUND STRAP FROM ENGINE TO FRAME
35
HEXAGON HEAD BOLT BRACKET TO BRACKET
35
SCREW , Replaced By: N304017010040
35
SCREW ANGLE TO CROSS MEMBER M 10X30
38
WASHER GROUND CABLE
38
WASHER RADIATOR TO RUBBER MOUNTING
41
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
44
RELAY (BATTERY MASTER SWITCH)
47
SCREW FULL-LOAD STOP BRACKET
50
WASHER , Replaced By: N000125008443
999
ELECTRIC CABLE FROM FRAME CROSS MEMBER TO CAB
