Поз.
Артикул
Описание
5

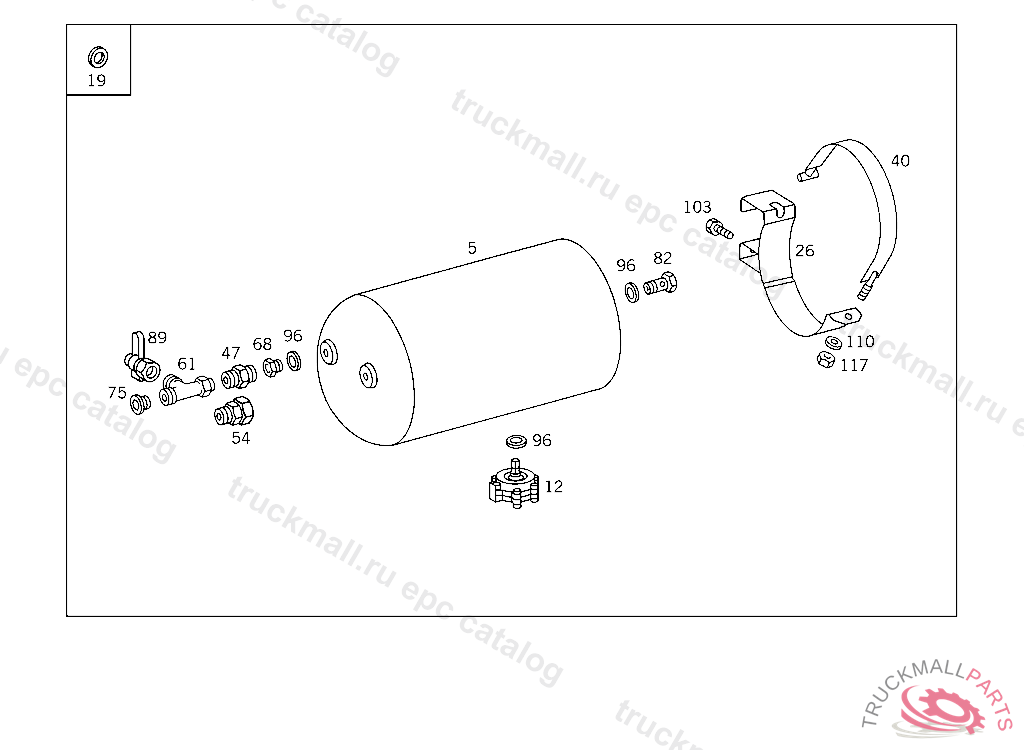

RESERVOIR10L,206 MM,8.5 BAR
5
RESERVOIR COMPRESSED AIR 10 L.
12
VALVE AUTOMATIC DRAIN
19
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
26
BRACKET AIR RESERVOIR TO FRAME
40
STRAP VACUUM TANK
47
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
54
FITTING RELAY VALVE,CONNECTION: "10",950459
61
T-FITTING RELAY VALVE,CONNECTION: "20"
68
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
75
SCREW PLUG , Replaced By: N000908022011
82
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
89
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
89
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
89
TEST CONNECTION
96
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
96
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
103
SCREW RADIATOR
110
WASHER RADIATOR TO RUBBER MOUNTING
110
WASHER GROUND CABLE
117
NUT BRACKET TO RETARDER
117
NUT BATTERY CABLE
