Поз.
Артикул
Описание

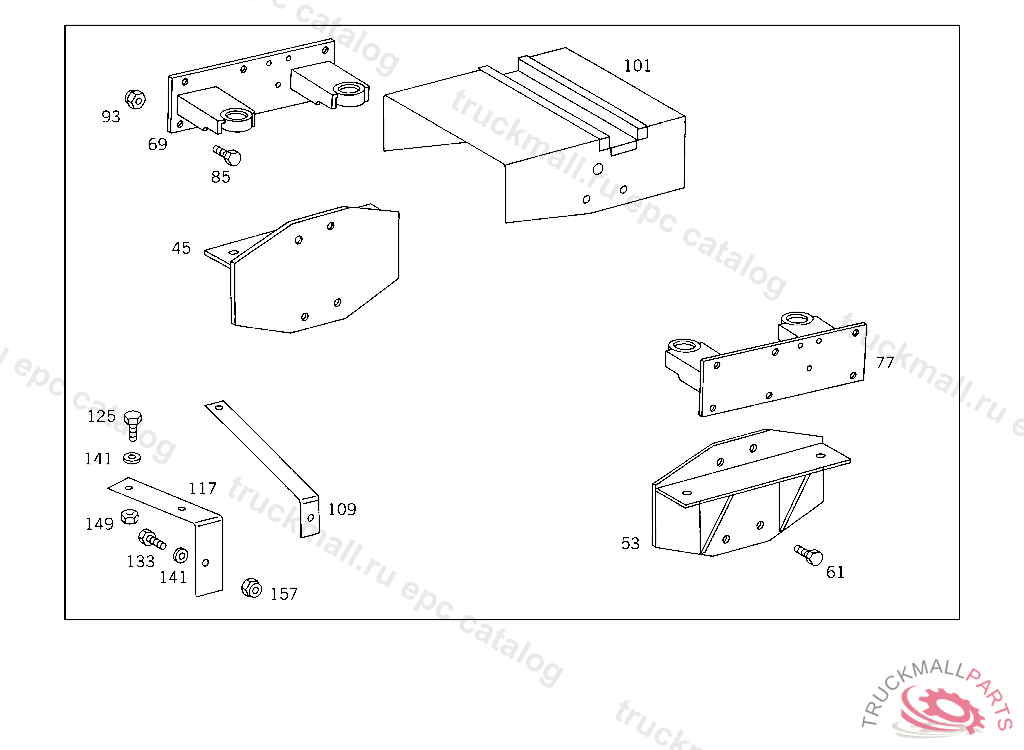

45
BRACKET RIGHT
53
BRACKET LEFT
61
SCREW COOLING WATER LINE TO ENGINE
69
BRACKET RIGHT
77
BRACKET LEFT
85
SCREW CONSOLE TO SIDE MEMBER M 14X1.5X40
85
SCREW BRACKET TO BATTERY CASE
93
NUT , Replaced By: N910113014001
93
NUT BRACKET TO BATTERY CASE
101
PROTECTIVE PLATE
109
BRACKET PRESSURE SWITCH
117
BRACKET PRESSURE SWITCH
125
SCREW , FROM CHASSIS: 073 100001
133
SCREW BRACKET TO EXHAUST PIPE BRACKET
141
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
141
WASHER PLUG SOCKET TO BRACKET
149
NUT
149
NUT SPRING-LOADED PUSH ROD
157
NUT , Replaced By: N913004006001
999
WASHER PARTS KIT
999
VALVE
999
STOP LIGHT SWITCH
999
BRACKET (RELAY BOX)
999
SWITCHING APPARATUS
999
SWITCH
999
SWITCH
999
HYDRAULIC BRAKE
999
HYDRAULIC BRAKE
999
HYDRAULIC BRAKE
999
GLAND , Replaced By: A0019901967
