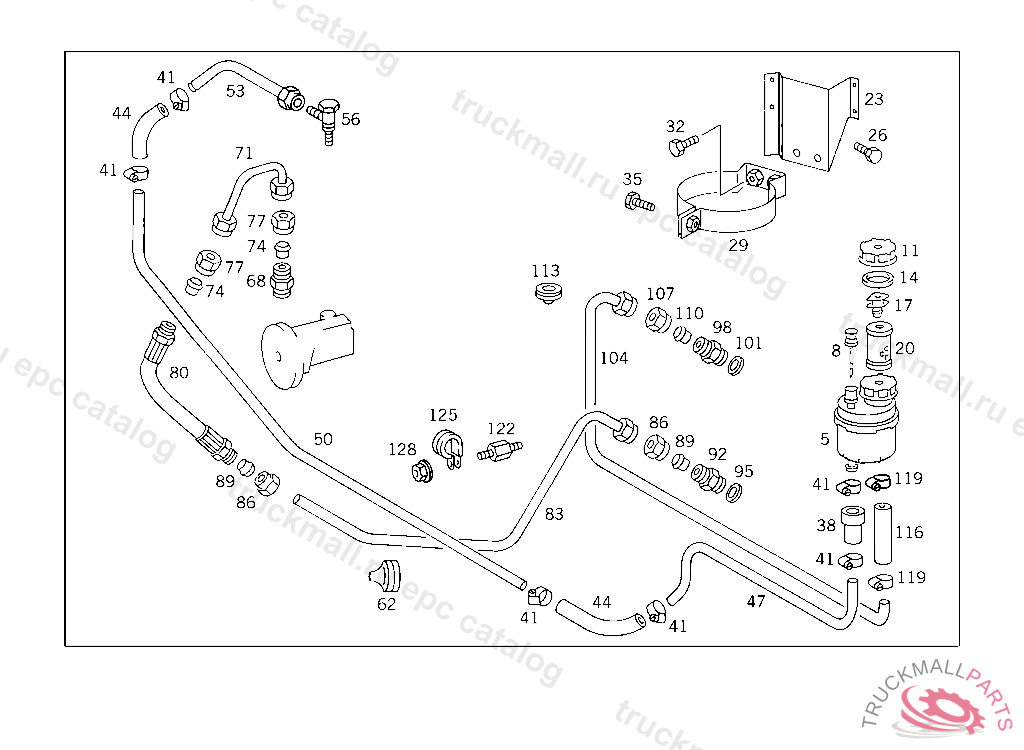

Поз.
Артикул
Описание
5
TANK OIL
8
OIL DIPSTICK , Replaced By: A0004661167
11
FILLER CAP
14
SEAL RING
17
BRACKET
20
FILTER
23
BRACKET OIL TANK
26
SCREW PUMP TO BRACKET
26
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
29
STRAP OIL TANK
32
SCREW BRACKET TO SIDE MEMBER
35
SCREW , Replaced By: N304017010040
38
HOSE FROM OIL TANK TO SUCTION LINE
41
LOOM TIE. CLAMP HOSE TO FLANGE AND TO VALVE
41
CLAMP HOSE TO HEATING PIPE
41
CLAMP , Replaced By: N000000000667
41
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
44
HOSE HOSE TO OIL LINE
47
LINE (SUCTION LINE),FROM OIL TANK TO PUMP SA 44037/03, LENGTH AVAILABLE:3000 MM942971,SA 44037 FROM IDENT NO. 942972,SERIE
50
HOSE (SUCTION LINE),FROM OIL TANK TO PUMP, N 000001 P 188880
53
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. N 023413 P 261236, Replaced By: A6679974182
56
SCREW CONNECTION COMPRESSED AIR LINE TO WHEEL HUB, Replaced By: N000000006458
62
GROMMET 34 MM
68
FITTING (SUCTION LINE),FROM OIL TANK TO PUMP, N 000001 P 188880
71
LINE FROM OIL PUMP TO HIGH PRESSURE HOSE
74
SEAL CONE LINE CONNECTION
74
GLAND , Replaced By: A0019901967
77
UNION NUT LINE CONNECTION, Replaced By: N000000006239
80
HOSE DELIVERY LINE TO PUMP
80
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
80
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
83
TUBE FROM HIGH PRESSURE HOSE TO STEERING
83
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
86
UNION NUT LINE CONNECTION, Replaced By: N000000006239
89
GLAND , Replaced By: A0019901967
89
SEAL CONE LINE CONNECTION
92
FITTING DELIVERY LINE TO PUMP
95
SEAL RINGTO 006 997 00 72
98
SCREW-IN FITTING , Replaced By: N003901015003
101
SEAL RING VALVE TO VALVE,K 025179
104
LINE (RETURN LINE),FROM STEERING TO OIL TANK
107
UNION NUT LINE CONNECTION
110
GLAND LINE CONNECTION
113
GROMMET 34 MM
116
HOSE (RETURN LINE),FROM STEERING TO OIL TANK
119
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
119
LOOM TIE. CLAMP HOSE TO FLANGE AND TO VALVE
119
CLAMP HOSE TO HEATING PIPE
119
CLAMP , Replaced By: N000000000667
122
BUFFER COMPRESSED AIR LINE TO FRAME
125
CLAMP ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
128
NUT , Replaced By: N913004006001
