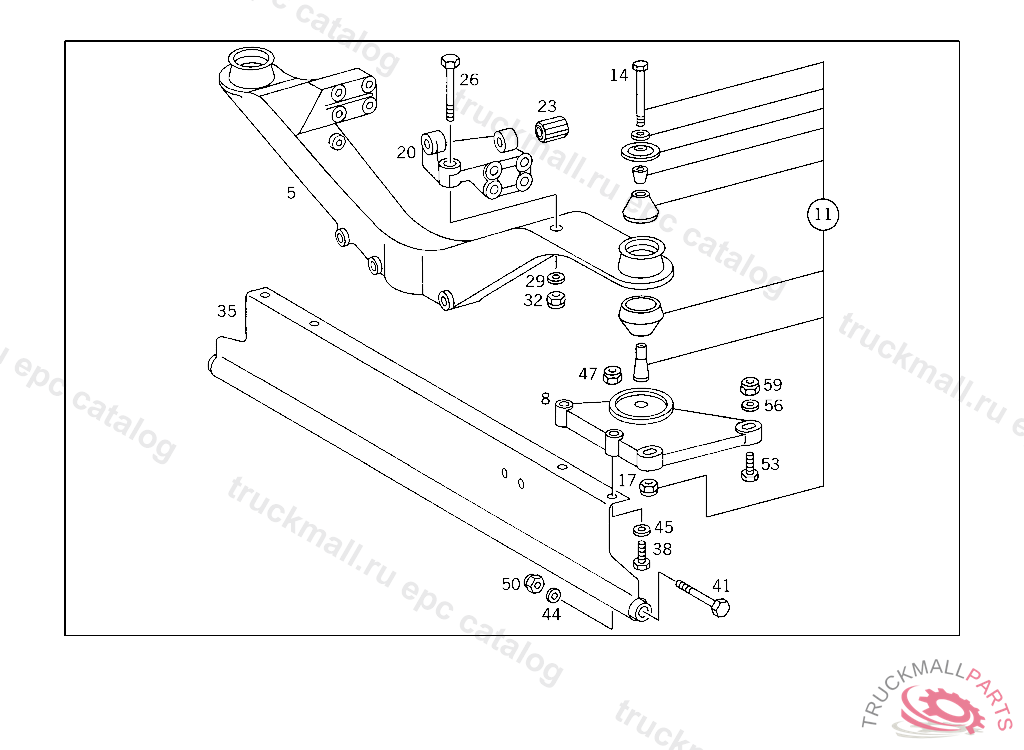

Поз.
Артикул
Описание
5
ENGINE SUPPORT FRONT
8
SUPPORTING PLATE RIGHT
8
SUPPORTING PLATE LEFT
11
RUBBER MOUNTING PARTS KIT
14
SCREW STRUTS TO SIDE MEMBER WITH ANGLE
17
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
17
NUT SUPPORT TO SIDE MEMBER
20
SUPPORTING ARM ALTERNATOR
23
BUSHING
26
SCREW STRUT TO BUMPER M 12X1.5X95
26
SCREW COVER PLATE TO BRACKET
29
WASHER ENGINE SUPPORTING ARM ON ENGINE SUPPORT
32
NUT SUPPORT TO SIDE MEMBER
32
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
35
CROSS MEMBER FRONT BOTTOM
38
SCREW , Replaced By: N304017010030
41
SCREW CROSS MEMBER TO SIDE MEMBERS
44
WASHER ENGINE SUPPORTING ARM ON ENGINE SUPPORT
45
WASHER RADIATOR TO RUBBER MOUNTING
45
WASHER GROUND CABLE
47
NUT , Replaced By: N910113010000
50
NUT , Replaced By: N910113012003
50
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
53
SCREW BRACKET TO SUPPORT
53
SCREW CONSOLE TO CAB M 10X60
56
WASHER , Replaced By: A4219905440
59
NUT , Replaced By: N910113010000
