Поз.
Артикул
Описание

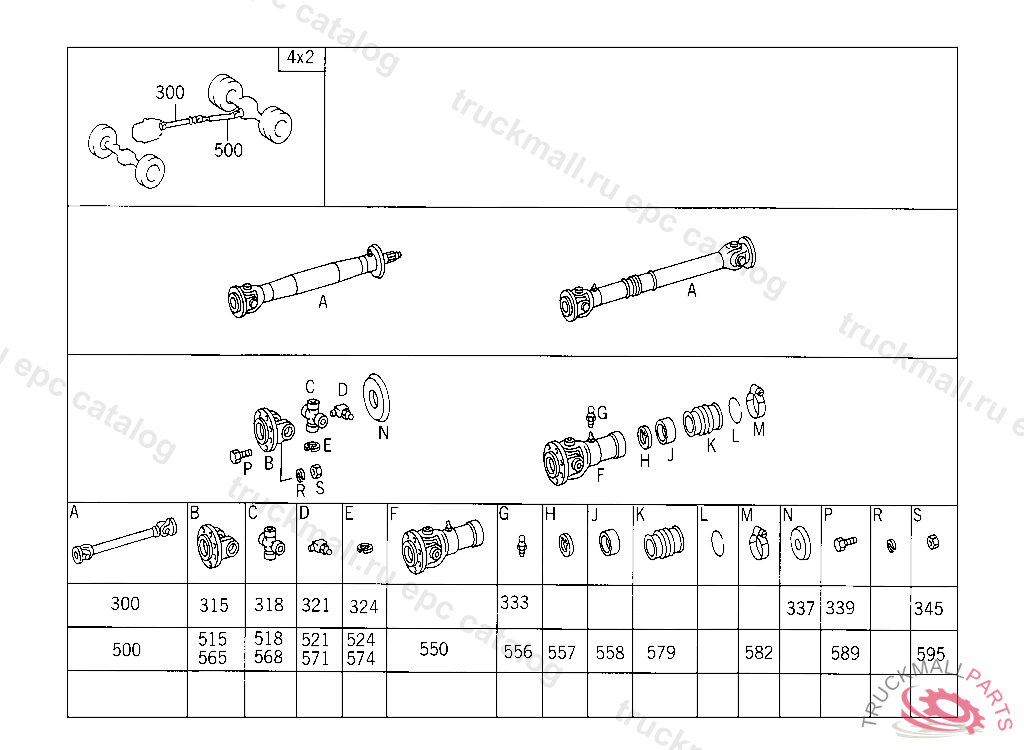

300
PROPELLER SHAFT FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II 1303 MM-KRUPP
315
DRIVE FLANGE
318
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
318
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
321
GREASE NIPPLE
321
GREASE NIPPLE
324
SNAP RING2.550 MM
324
SNAP RING2.500 MM
324
SNAP RING2.650 MM
324
SNAP RING2.575 MM
324
SNAP RING2.600 MM
324
SNAP RING2.625 MM
324
SNAP RING2.550 MM
324
SNAP RING2.600 MM
324
SNAP RING2.650 MM
324
SNAP RING2.525 MM
324
SNAP RING2.725 MM
324
SNAP RING2.675 MM
324
SNAP RING2.500 MM
324
SNAP RING2.700 MM
324
SNAP RING2.750 MM
324
SNAP RING2.700 MM
324
SNAP RING2.750 MM
333
GREASE NIPPLE
333
GREASE NIPPLE INTERMEDIATE LEVER
337
PROTECTIVE CAP FRONT PROPELLER SHAFT
339
SCREW , Replaced By: A0079901001
339
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
345
NUT , Replaced By: N308673010001
345
HEXAGON NUT. NUT PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE
500
PROPELLER SHAFT FROM INTERMEDIATE BEARING TO REAR AXLE 1520 MM
515
DRIVE FLANGE
518
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
518
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
521
GREASE NIPPLE
521
GREASE NIPPLE
524
SNAP RING2.550 MM
524
SNAP RING2.575 MM
524
SNAP RING2.650 MM
524
SNAP RING2.650 MM
524
SNAP RING2.500 MM
524
SNAP RING2.600 MM
524
SNAP RING2.550 MM
524
SNAP RING2.625 MM
524
SNAP RING2.600 MM
524
SNAP RING2.525 MM
524
SNAP RING2.675 MM
524
SNAP RING2.500 MM
524
SNAP RING2.700 MM
524
SNAP RING2.700 MM
550
UNIVERSAL JOINT YOKE REAR PROPELLER SHAFT
556
GREASE NIPPLE
556
GREASE NIPPLE INTERMEDIATE LEVER
557
SEAL RING , PROPELLER SHAFT WITH BOOT
558
SEAL HOLDER , PROPELLER SHAFT WITH BOOT
565
DRIVE FLANGE
568
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
568
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
571
GREASE NIPPLE
571
GREASE NIPPLE
574
SNAP RING2.550 MM
574
SNAP RING2.600 MM
574
SNAP RING2.650 MM
574
SNAP RING2.575 MM
574
SNAP RING2.650 MM
574
SNAP RING2.500 MM
574
SNAP RING2.600 MM
574
SNAP RING2.625 MM
574
SNAP RING2.550 MM
574
SNAP RING2.525 MM
574
SNAP RING2.725 MM
574
SNAP RING2.675 MM
574
SNAP RING2.500 MM
574
SNAP RING2.700 MM
574
SNAP RING2.700 MM
574
SNAP RING2.750 MM
574
SNAP RING2.750 MM
579
BOOT REAR PROPELLER SHAFT
579
BOOT
582
CLAMP HOSE 70-90X13 MM
589
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
589
SCREW , Replaced By: A0079901001
595
HEXAGON NUT. NUT PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE
