Поз.
Артикул
Описание

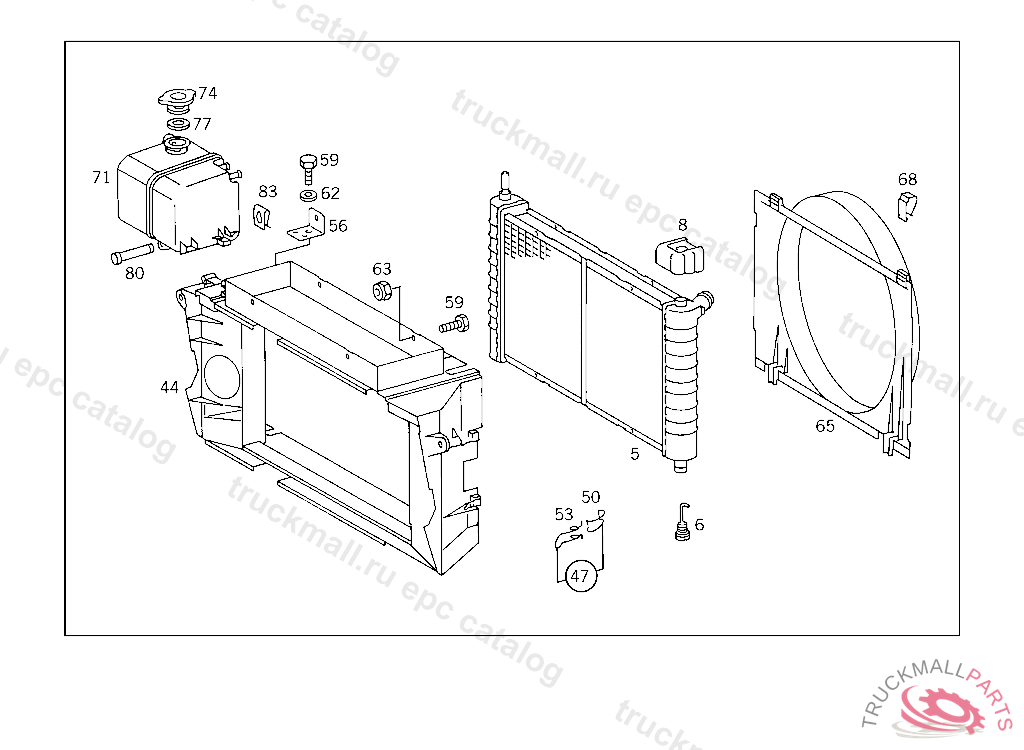

5
RADIATOR WATER
6
SCREW WATER DRAIN
8
RUBBER MOUNTING RADIATOR TO AIR BAFFLE,LEFT
8
RUBBER MOUNTING RADIATOR TO AIR BAFFLE,RIGHT
44
AIR BAFFLE. AIR GUIDE CASE CHARGING AIR INTERCOOLER
47
FASTENER RADIATOR MOUNTING
50
CLAMP
53
LEVER COVER TO CHARGE AIR INTERCOOLER
56
BRACKET FUEL LINES TO TRANSMISSION
59
SCREW , Replaced By: N304017008034
59
SCREW PIPE CLAMP
59
SCREW , Replaced By: N304017008021
62
WASHER BRACKET TO CAB REAR PANEL
62
WASHER , Replaced By: N000125008443
62
WASHER BRACKET TO LEFT SIDE MEMBER
63
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
65
FAN SHROUD RADIATOR
68
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
71
TANK
74
RADIATOR CAP , Replaced By: A0005014115
77
GASKET O.D., 37 MM
80
PIN EXPANSION TANK TO BRACKET
83
LOCK AT WATER EXPANSION TANK
