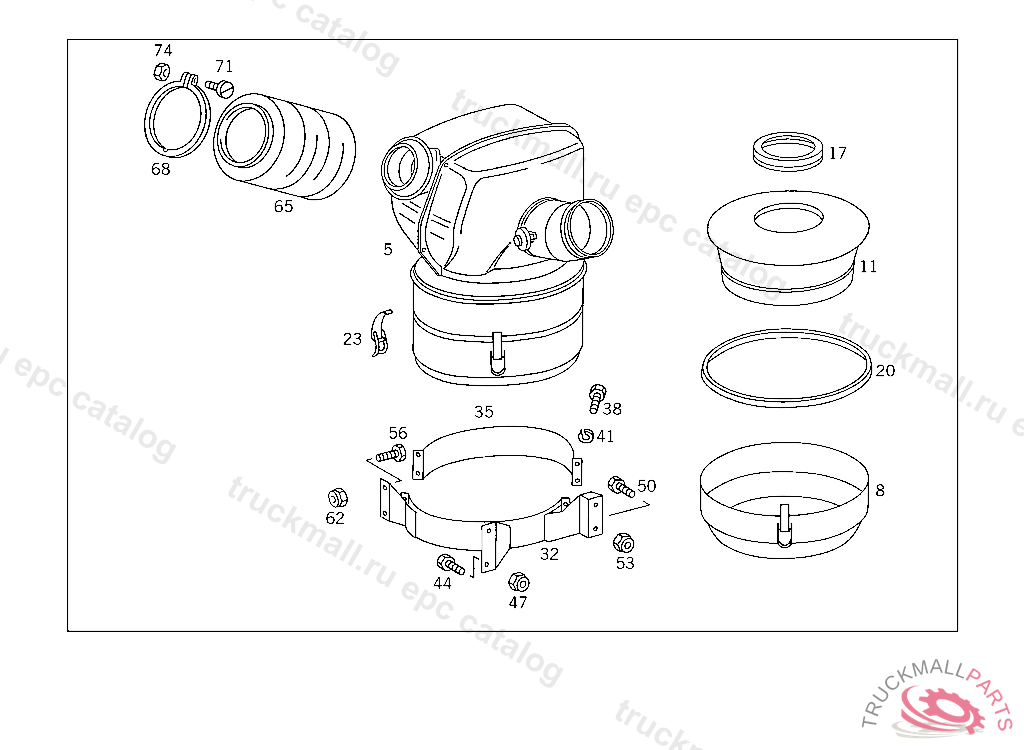

Поз.
Артикул
Описание
5
AIR CLEANER OIL BATH KNECHT
5
AIR CLEANER OIL BATH MANN & HUMMEL
8
FILTER BOWL
11
FILTER ELEMENT
11
FILTER ELEMENT
17
GASKET OUTSIDE
20
GASKET INSIDE
23
FASTENERKNECHT
23
FASTENER
32
SUPPORT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.008096, Replaced By: A3715207633
32
SUPPORT AIR CLEANER
35
STRAP AIR CLEANER TO SUPPORT
38
SCREW , Replaced By: N910143008002
38
SCREW , Replaced By: N910142008001
41
LOCK WASHER RAIL TO BATTERY SUPPORT
44
SCREW SUPPORT TO SIDE MEMBER M14X40
47
NUT PARTICLE FILTER M14
50
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
53
NUT STRAP TO SUPPORT
56
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
62
NUT EXHAUST PIPE TO SIDE MEMBER
65
BOOT AIR CLEANER TO CAB
68
CLAMP BOOT TO INTAKE PIPE
71
SCREW BOOT TO AIR DUCT AND TO AIR CLEANER
74
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
WASHER GROUND CABLE
999
WASHER RADIATOR TO RUBBER MOUNTING
