Главная
›
Mercedes
›
TRUCK
›
1821 AK/4X4/36 MBT
›
371.226
›
50 RADIATOR
›

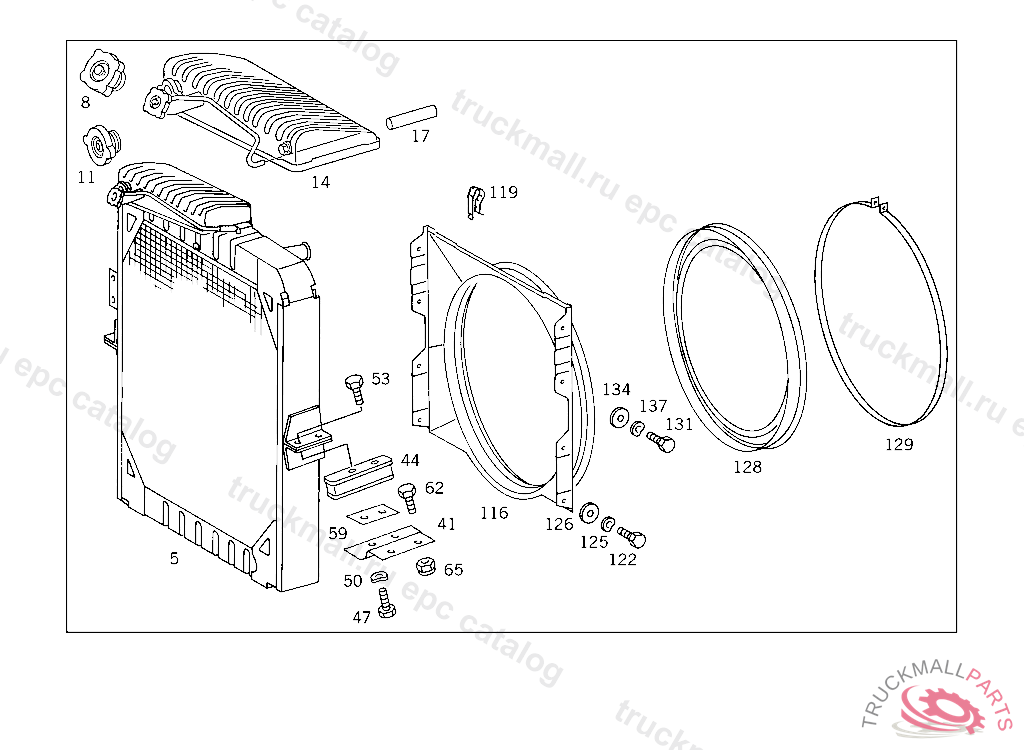

060 RADIATOR AND EXPANSION TANK IL. 1
Mercedes A6175014301 - РАДИАТОР
1821 AK/4X4/36 MBT 371.226
50 RADIATOR - 060 RADIATOR AND EXPANSION TANK IL. 1
Поз.
Артикул
Описание
5
A3715017301
5
A6175014301
8
A0005014615
RADIATOR CAP FILLER NECK
8
A3715017315
11
A3715017215
11
A0005013715
RADIATOR CAP CENTRAL
14
A3715007149
17
A3715019182
41
A3715047301
44
A3875040012
RUBBER MOUNTING RADIATOR
47
A0049909204
SCREW RIGHT SUPPORT TO RADIATOR,K 142907
50
N000137010101
SPRING WASHER MOUNTING TO BODY
53
A0019908504
SCREW EXHAUST PIPE TO SIDE MEMBER
59
A3715047184
59
A3715047284
62
A0029902904
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
65
A0009906750
NUT STRAP TO SUPPORT
116
A3715007355
116
A3715057855
122
N000933006183
SCREW , Replaced By: N304017006016
125
N000137006204
SPRING WASHER LICENSE PLATE TO BRACKET
125
N000137006101
SPRING WASHER PROTECTIVE PLATE TO BELL HOUSING
128
A6175050186
BOOT FAN SHROUD
129
A3879950035
CLAMP BOOT TO FAN SHROUD
131
A0019901404
SCREW AT FILTER BRACKET
134
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
134
N009021006103
WASHER , Replaced By: N009021006208
137
N000137006101
SPRING WASHER PROTECTIVE PLATE TO BELL HOUSING
137
N000137006204
SPRING WASHER LICENSE PLATE TO BRACKET
