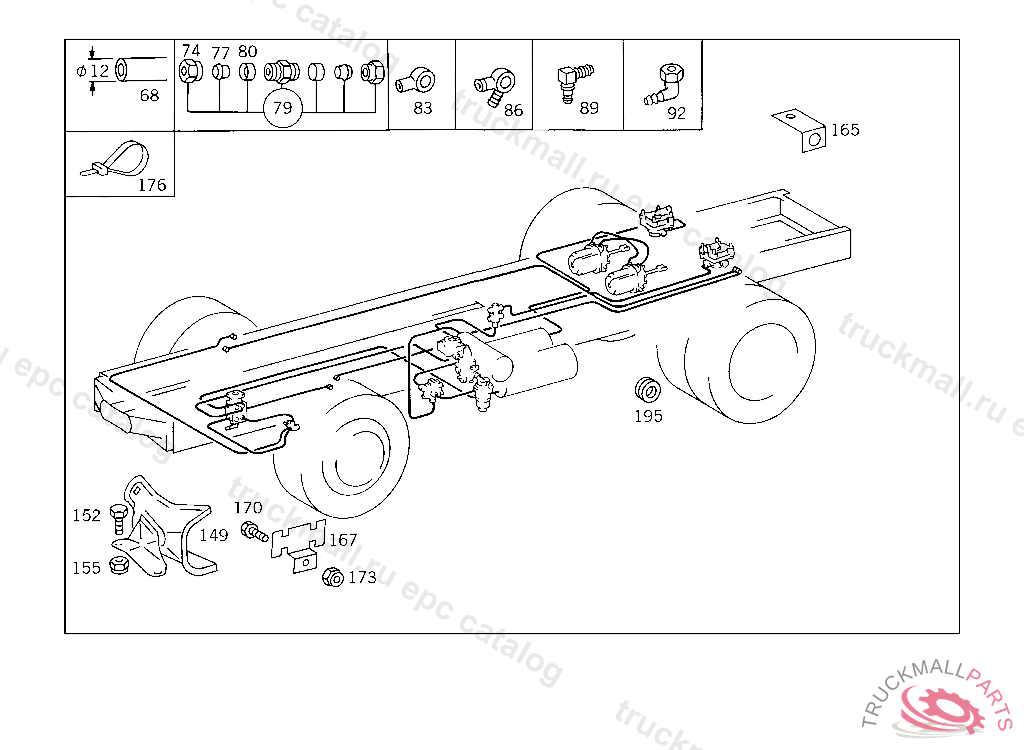

Поз.
Артикул
Описание
68
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR 9X12 MM, LENGTH AVAILABLE 3000 MM
68
LINE FROM BULKHEAD FITTING TO DIAPHRAGM CYLINDER
68
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
68
LINE FROM BULKHEAD FITTING TO DIAPHRAGM CYLINDER
68
HOSE , Replaced By: A0009872827
74
UNION NUT LINE CONNECTION, Replaced By: N000000006239
77
GLAND , Replaced By: A0019901967
77
SEAL CONE LINE CONNECTION
79
FITTING (PARTS KIT),LINE RUPTURE
80
SLEEVE LINE CONNECTION
80
SLEEVE
83
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
86
BANJO UNION FROM BULKHEAD FITTING TO PRESSURE REGULATOR
89
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
92
ELBOW FITTING AIR RESERVOIR,CONNECTION: "13", PLUG CONNECTION
149
BRACKET COMPRESSED AIR LINE MOUNTING,008097
149
BRACKET COMPRESSED AIR LINE TO BUMPER STRUT
152
SCREW STEERING SHAFT BEARING TO CAB M 8X20
152
SCREW PIPE CLAMP
155
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
165
BRACKET COMPRESSED AIR LINE TO REAR AXLE CASING
167
BRACKET BREATHER LINE TO SIDE MEMBER
170
SCREW BRACKET TO FRAME M 8X35
173
NUT BRACKET TO BRACKET
176
LOOM TIE COMPRESSED AIR LINE MOUNTING
176
LOOM TIE , Replaced By: A3719977090
176
LOOM TIE , Replaced By: A3719977090
176
LOOM TIE365 MM
195
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
ELBOW FITTING ,5 433281
999
VALVE AIR COMPRESSOR LINE,KAN 27/98
999
FITTING AIR COMPRESSOR LINE,KAN 27/98
999
WASHER25MM
