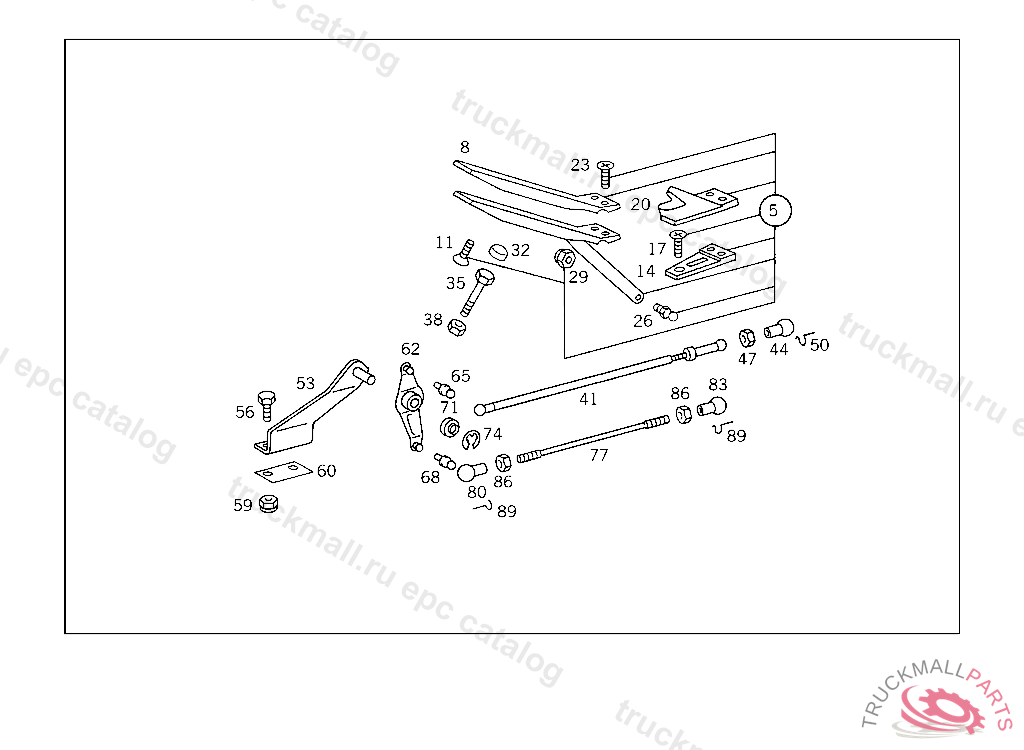

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL M6X20,B 990550010626
20
BOOT ACCELERATOR PEDAL
23
SCREW ACCELERATOR PEDAL TO FLOOR PLATE M6X25,B 990550010626
26
BALL PIVOT LOAD SENSOR
29
NUT AT FILTER BRACKET
32
STOP ACCELERATOR PEDAL
35
SCREW REGULATING VALVE TO BRACKET
38
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
41
ROD LOAD SENSOR CONTROL
44
BALL SOCKET PULL ROD TO LEVER
47
NUT BALL SOCKET TO ROD
50
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
53
BEARING BRACKET INTERMEDIATE BEARING
56
SCREW , Replaced By: N910105010011
59
NUT EXHAUST PIPE TO SIDE MEMBER
62
LEVER , Replaced By: A6153000628
62
LEVER INTERMEDIATE BEARING
65
BALL STUD. BALL PIVOT TOP B10X4,5 MM
68
BALL PIVOT BOTTOM B13X5 MM
71
COVERING INTERMEDIATE BEARING
74
LOCK PLATE INTERMEDIATE BEARING
77
PULL ROD FROM INTERMEDIATE LEVER TO ENGINE
80
BALL SOCKET ROD TO BALL PIVOT
83
BALL SOCKET ROD TO BALL PIVOT
86
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
89
SECURING CLIP. CIRCLIP
