Поз.
Артикул
Описание

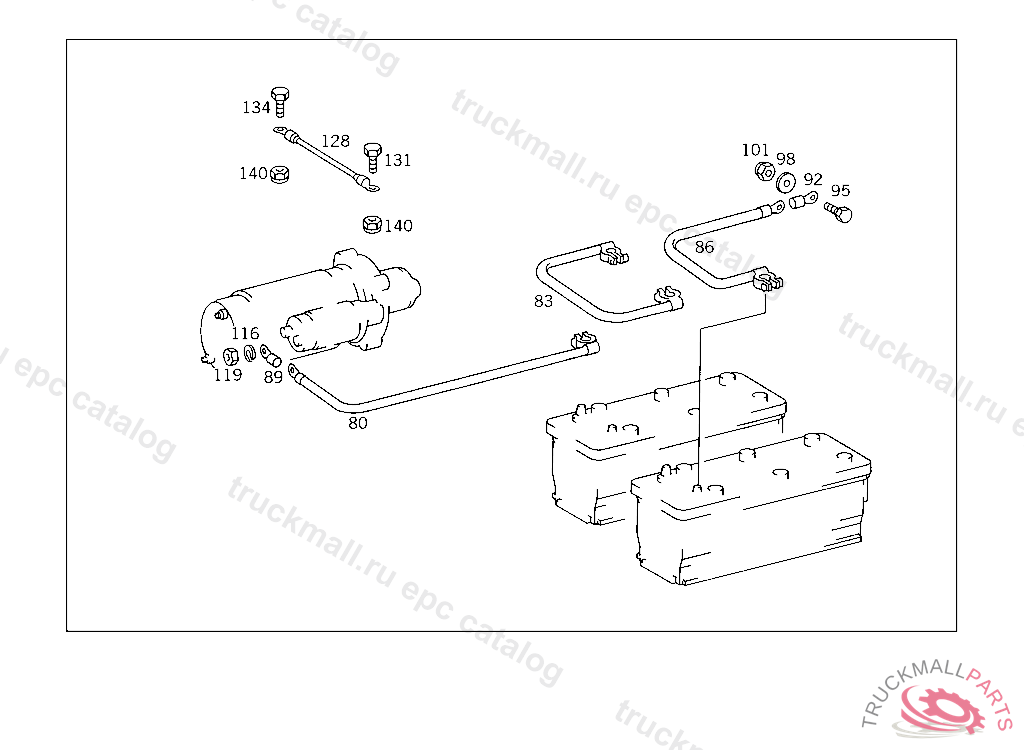

80
POS.CABLE FROM BATTERY TO STARTING MOTOR
83
POS.CABLE , Replaced By: N072551070880, +001N072332013100, +001N072332013200
86
NEG. CABLE FROM BATTERY TO GROUND AT SIDE MEMBER
89
CABLE SHOE BATTERY CABLE 12-70 MM
92
CABLE SHOE BATTERY CABLE 10-70 MM
95
SCREW STRUT TO FRAME, LEFT
98
WASHER BRACKET TO COVERING
101
NUT EXHAUST PIPE TO SIDE MEMBER
116
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
119
NUT BATTERY CABLE
128
ELECTRIC CABLE FROM FRAME CROSS MEMBER TO CAB
128
NEG. CABLE FROM FRAME CROSS MEMBER TO CAB
131
SCREW , Replaced By: N910142008009
134
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
140
NUT BRACKET TO BRACKET
