Поз.
Артикул
Описание
5

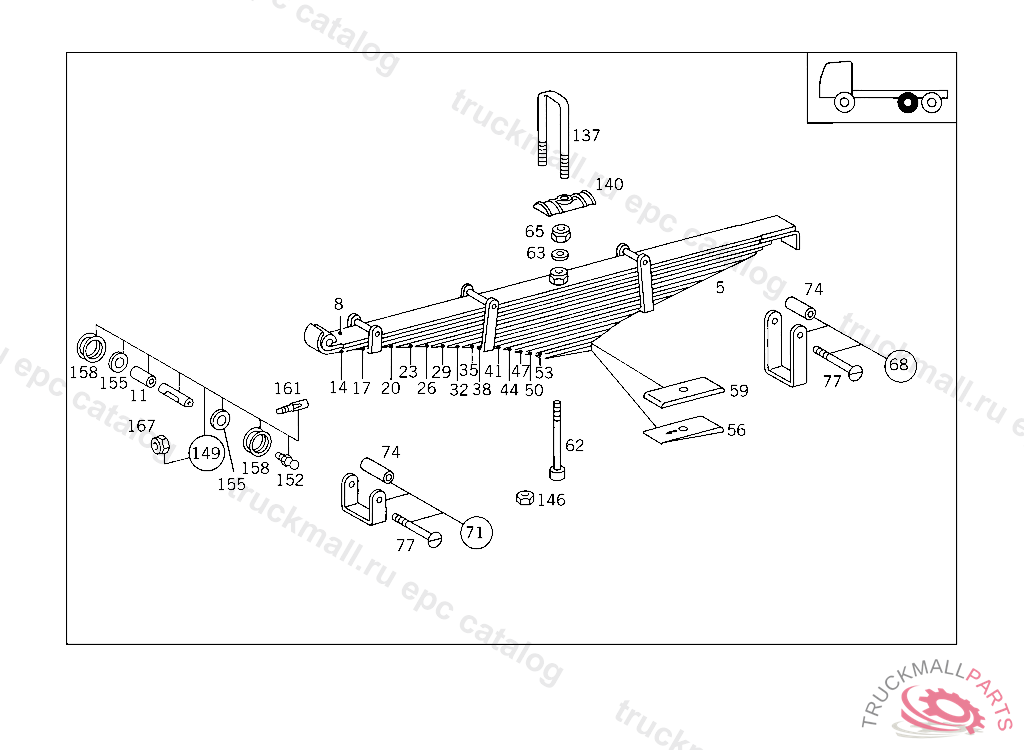

REAR SPRING 15-LEAF, REAR AXLE I
5
REAR SPRING 15-LEAF, REAR AXLE I
8
SPRING LEAFNO.1, TO 371 320 70 05, 73 05
8
SPRING LEAFNO.1, TO 371 320 72 05, 79 05
11
BUSHING
11
BUSHING
14
SPRING LEAFNO.2
17
SPRING LEAFNO.05
20
SPRING LEAFNO.06
23
SPRING LEAFNO.07
26
SPRING LEAFNO.08
29
SPRING LEAFNO.09
32
SPRING LEAFNO.10
35
SPRING LEAFNO.11
38
SPRING LEAFNO.12
41
SPRING LEAFNO.13
44
SPRING LEAFNO.14
47
SPRING LEAFNO.15
50
SPRING LEAFNO.16
53
SPRING LEAFNO.17
56
PAD
56
PAD
62
SCREWTO 371 320 70 05, 73 05
62
SCREWTO 371 320 72 05, 79 05
63
WASHER BEARING BRACKET TO FRAME
65
NUT BRACKET TO BEARING BRACKET
68
SPRING CLAMPTO 371 320 70 05, 73 05
68
SPRING CLAMPTO 371 320 72 05, 79 05
71
SPRING CLAMPTO 371 320 70 05, 73 05
71
SPRING CLAMPTO 371 320 72 05, 79 05
74
SPACER TUBE
77
SCREW FOR SPRING CLAMPS
137
U-BOLT REAR SPRING TO REAR AXLE
137
U-BOLT REAR SPRING TO REAR AXLE
140
PLATE REAR SPRING TO SPRING SADDLE
140
PLATE REAR SPRING TO SPRING SADDLE
146
NUT REAR SPRING TO REAR AXLE
146
NUT PARTICLE FILTER M14
149
SHACKLE PIN (PARTS KIT) FRONT SPRING TO FRONT SPRING BRACKET
152
GREASE NIPPLE PROTECTIVE TUBE
155
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
155
WASHER FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
155
WASHER , Replaced By: A3523231076
158
SEAL RING SPRING SHACKLE TO SPRING REAR BRACKET
161
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
167
NUT EXHAUST PIPE TO SIDE MEMBER
