Mercedes N046234012006 - Кабель

2517/6X2/42 OTTOMARSAN/TUERKEI 371.262

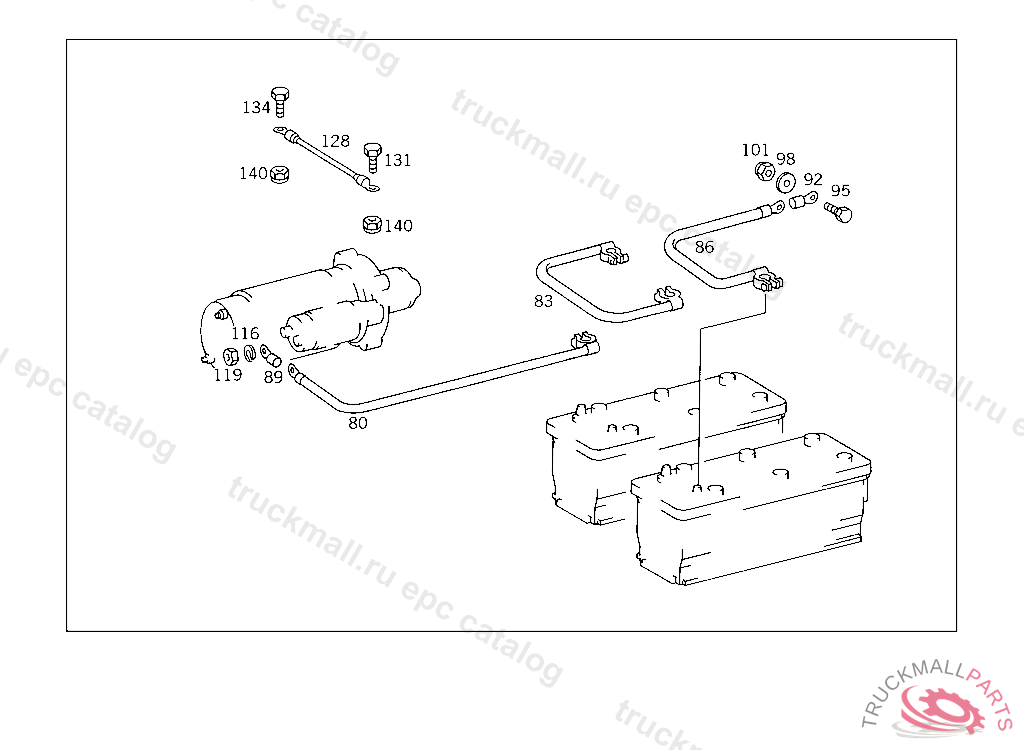

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 070 BATTERY,MOUNTING,AND BATTERY CABLES IL. 2

Поз.
Артикул
Описание
80
A6205405030
POS.CABLE FROM BATTERY TO STARTING MOTOR
83
A3875400030
POS.CABLE , Replaced By: N072551070880, +001N072332013100, +001N072332013200
86
A3175400531
NEG. CABLE FROM BATTERY TO GROUND AT SIDE MEMBER
89
N046234012006
CABLE SHOE BATTERY CABLE 12-70 MM
92
N046234010007
CABLE SHOE BATTERY CABLE 10-70 MM
95
A0019908704
SCREW STRUT TO FRAME, LEFT
98
N009021010209
WASHER BRACKET TO COVERING
101
A0009906550
NUT EXHAUST PIPE TO SIDE MEMBER
116
N912004010102
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
119
A0009908150
NUT BATTERY CABLE
128
A6205402339
NEG. CABLE FROM FRAME CROSS MEMBER TO CAB
128
A3715407236
ELECTRIC CABLE FROM FRAME CROSS MEMBER TO CAB
131
A0019904104
SCREW , Replaced By: N910142008009
134
A0019903704
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
140
A0009906350
NUT BRACKET TO BRACKET
