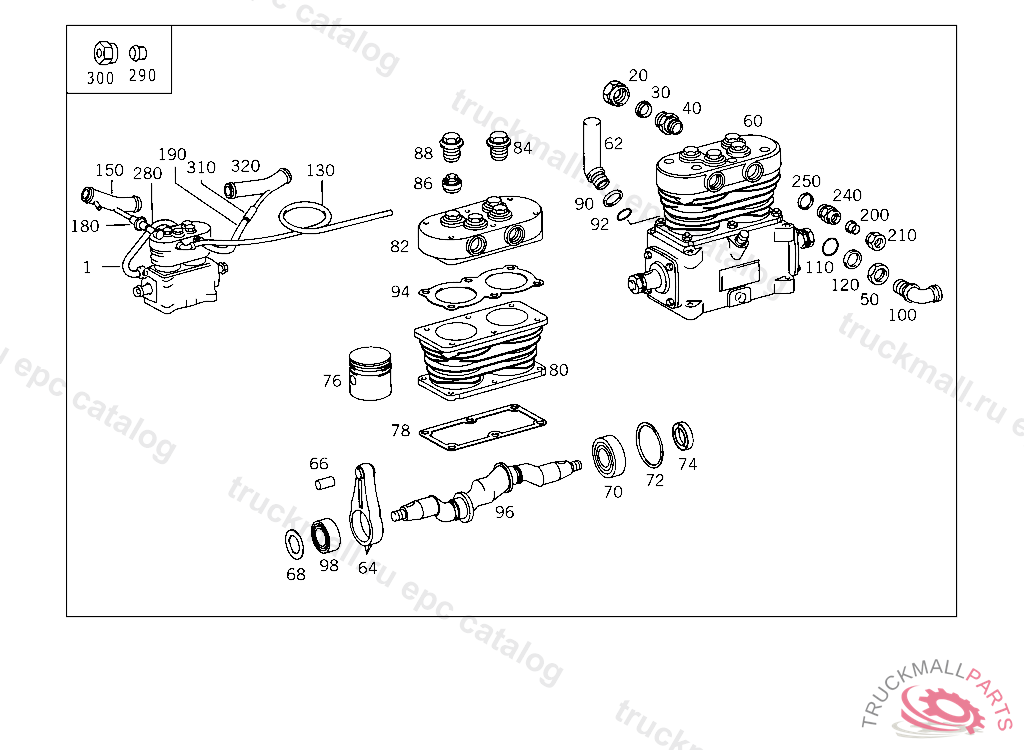

Поз.
Артикул
Описание
1
INTAKE PIPE INTAKE LINE TO CYLINDER HEAD
20
UNION NUT LINE CONNECTION, Replaced By: N000000006243
30
GLAND , Replaced By: A0019901267
40
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
50
NUT SUCTION LINE TO OIL PUMP
60
COMPRESSOR WATER-COOLED
60
COMPRESSOR , Replaced By: A0021313301
62
PIPE
62
PIPE
64
CONNECTING ROD
66
BUSHING CONNECTING ROD
68
WASHER
70
CYLINDR. ROLLER BEARING CRANKSHAFT BEARING
72
GASKET
74
SEAL RING
76
PISTON
78
GASKET CYLINDER CRANKCASE
78
GASKET , Replaced By: A0011319380
80
CYLINDER LINER
82
CYLINDER HEAD
84
SCREW PLUG
84
SCREW PLUG
86
VALVE CYLINDER HEAD,TOP
86
VALVE CYLINDER HEAD,TOP
88
SCREW PLUG
88
SCREW PLUG
90
THRUST RING
90
THRUST RING
92
SEAL RING
92
SEAL RING
94
GASKET
94
GASKET
94
GASKET , Replaced By: A0011317680
96
CRANKSHAFT
98
NEEDLE BEARING
98
NEEDLE BEARING
100
ELBOW FITTING
100
ELBOW FITTING
110
SEALING CORD SUCTION LINE TO OIL PUMP
110
SEALING CORD SUCTION LINE TO OIL PUMP
120
THRUST RING SUCTION LINE TO OIL PUMP
120
THRUST RING SUCTION LINE TO OIL PUMP
130
LINE , Replaced By: A0005516456
130
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
130
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
150
LINE FEED, FROM HOSE CONNECTION II TO THERMOSTAT, 001731
150
LINE COOLING WATER LINE TO THERMOSTAT, 005082
150
LINE COOLING WATER LINE TO THERMOSTAT, 005083
150
LINE COOLING WATER LINE TO THERMOSTAT, 005082
150
LINE COOLING WATER LINE TO THERMOSTAT, 005083
150
LINE COOLING WATER LINE TO THERMOSTAT, 005083
150
LINE COOLING WATER LINE TO THERMOSTAT, 005083
150
LINE COOLING WATER LINE TO THERMOSTAT, 005083
150
LINE COOLING WATER LINE TO THERMOSTAT, 001914-005082
150
LINE COOLING WATER LINE TO THERMOSTAT, 005083
150
LINE FEED, 005083
150
LINE COOLING WATER LINE TO THERMOSTAT, 001914-005082
180
HOSE , Replaced By: A3175011482
180
HOSE
190
LINE COOLING WATER LINE TO AIR COMPRESSOR
190
LINE COOLING WATER LINE TO AIR COMPRESSOR, 001732-001913
190
LINE COOLING WATER LINE TO AIR COMPRESSOR
190
LINE COOLING WATER LINE TO AIR COMPRESSOR
200
SEAL CONE LINE CONNECTION
210
UNION NUT FEED LINE
240
DOUBLE FITTING LINE CONNECTION
240
DOUBLE FITTING LINE CONNECTION
250
SEAL RING LINE CONNECTION
280
LINE AIR COMPRESSOR
280
LINE AIR COMPRESSOR
290
SEAL CONE LINE CONNECTION
290
SEAL CONE LINE CONNECTION
300
UNION NUT FEED LINE
300
UNION NUT FEED LINE
310
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
310
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
310
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
310
HOSE15X24 MM, ORDER BY THE METER
310
HOSE15X24 MM, ORDER BY THE METER
310
HOSE15X24 MM, ORDER BY THE METER
320
PIPE ELBOW , 001731
999
COMPRESSOR TWO-CYLINDER AIR COMPRESSOR
999
999
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
CLAMP , Replaced By: N000000000667
