Mercedes A3715007331 -

2521/6X2/48 OTOMARSAN/TUERKEI 371.269

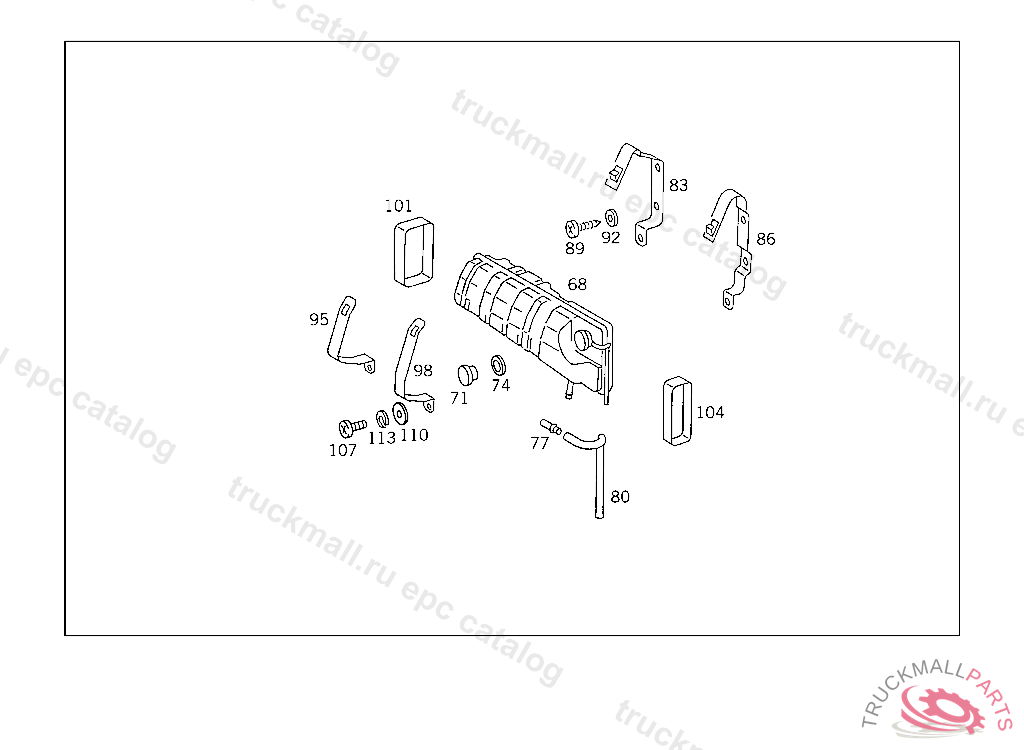

50 RADIATOR - 060 RADIATOR AND EXPANSION TANK IL. 2

Поз.
Артикул
Описание
68
A6205000149
TANK (EXPANSION TANK)
71
A0005014515
RADIATOR CAP
74
A0005010880
GASKET O.D., 37 MM
77
A0005010110
DRAIN PIPE EXPANSION TANK
80
A0139978682
HOSE OVERFLOW
83
A6205000031
BRACKET EXPANSION TANK
83
A3715007331
86
A3715007131
BRACKET EXPANSION TANK,LEFT
86
A6205000131
BRACKET EXPANSION TANK
89
N007981005306
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
92
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
95
A6205010320
STRAP EXPANSION TANK TO BRACKET
98
A3715010120
98
A6205010420
STRAP EXPANSION TANK TO BRACKET
101
A6205010195
SHIM EXPANSION TANK TO BRACKET
104
A6205010295
SHIM EXPANSION TANK TO BRACKET
107
N007985006193
SCREW , Replaced By: N000000001146
110
N009021006205
WASHER , Replaced By: N009021006208
113
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
