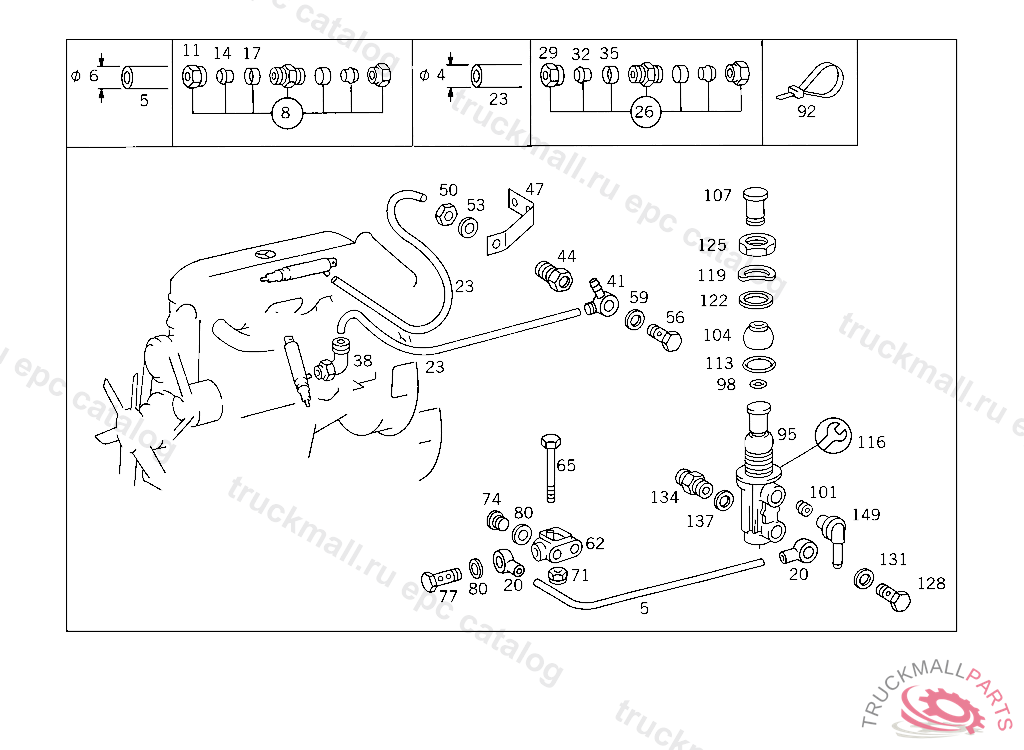

Поз.
Артикул
Описание
5
PLASTIC PIPE AERATION, ORDER BY THE METER
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
FITTING (PARTS KIT),LINE RUPTURE
11
UNION NUT LINE CONNECTION
14
GLAND LINE CONNECTION
17
SLEEVE LINE CONNECTION
20
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
23
PLASTIC PIPE RISING PIPE 4X6 MM
23
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
26
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
29
UNION NUT
32
SEAL CONE
32
GLAND , Replaced By: A0019901667
35
SLEEVE LEAK LINE
38
FITTING FROM PUMP TO CYLINDER
38
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
41
BANJO UNION COMPRESSED AIR LINE TO EXHAUST BRAKE CYLINDER
44
FITTING PRESSURE REGULATOR,CONNECTION: "40"
47
BRACKET SENSOR CABLE TO FRONT AXLE
50
NUT STRAP TO SUPPORT
53
WASHER
56
HOLLOW SCREW HEATING CONNECTION
59
SEAL RING LINE CONNECTION
62
DISTRIBUTOR EXHAUST BRAKE VALVE LINE CONNECTION
65
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X50
71
NUT AT FILTER BRACKET
74
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
77
HOLLOW SCREW LINE CONNECTION
80
SEAL RING LINE CONNECTION
92
LOOM TIE365 MM
92
LOOM TIE , Replaced By: A3719977090
92
LOOM TIE LINE MOUNTING 280 MM
95
VALVE EXHAUST BRAKE OPERATING MECHANISM
95
VALVE EXHAUST BRAKE OPERATING MECHANISM WESTINGHOUSE
95
VALVE EXHAUST BRAKE OPERATING MECHANISM BOSCH
98
SEAL RINGTO 000 434 21 01
101
STRAINERTO 000 434 21 01
101
CLEANERTO 000 434 22 01
104
CUP 3/2-WAY VALVE WABCO
104
CUPTO 371 434 72 01
107
HANDLETO 000 434 23 01
113
SEAL RINGTO 000 434 23 01
116
REPAIR KIT 3/2-WAY VALVE BOSCH
116
REPAIR KIT 3/2-WAY VALVE WABCO
119
SPRING WASHER AT CAB FLOOR
122
WASHER TWO-WAY VALVE TO BRACKET
125
NUT SUCTION LINE TO OIL PUMP
128
HOLLOW SCREW HEATING CONNECTION
131
SEAL RING LINE CONNECTION
134
FITTING LINE CONNECTION, Replaced By: N000000006446
137
SEAL RING LINE CONNECTION
149
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
BREATHER , Replaced By: A3933280065
