Mercedes N000471020001 - ПРЕДОХРАНИТЕЛЬ

2524/6X2/48 OTTOMARSAN/TUERKEI 371.274

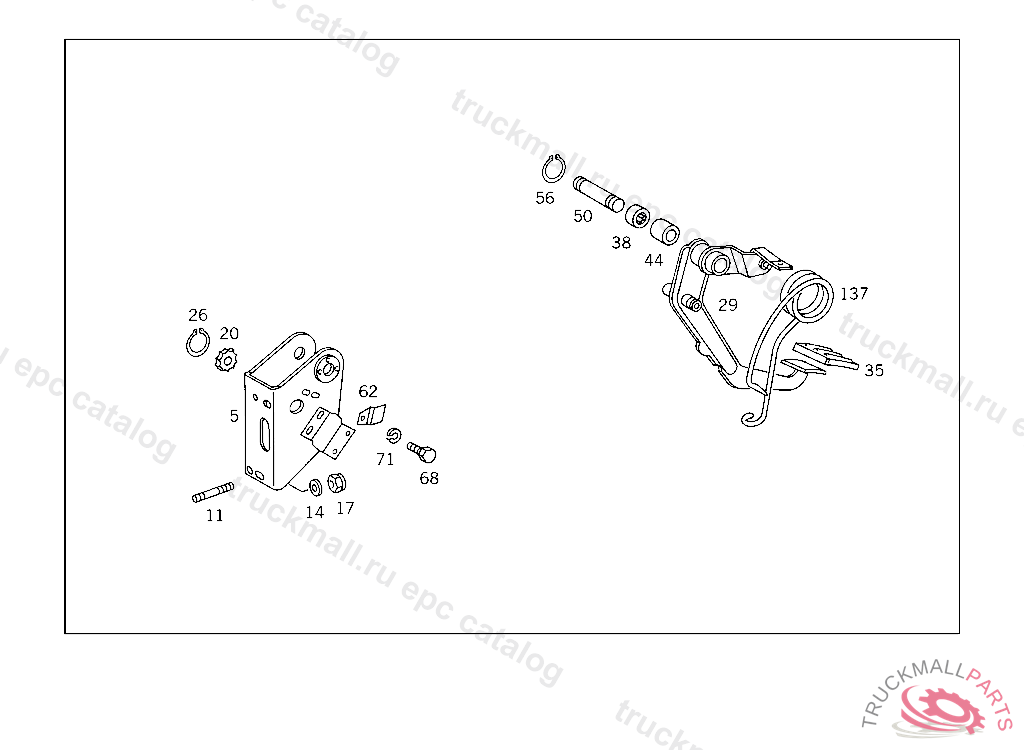

29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY IL. 1

Поз.
Артикул
Описание
5
A3712907119
5
A6202900219
BEARING BRACKET CLUTCH PEDAL
11
N000939008150
STUD BOLT BRAKE PEDAL UNIT
14
N007349008002
WASHER REAR FOGLAMP TO BRACKET
17
A0009906350
NUT BRACKET TO BRACKET
20
A3812910186
STOP PEDAL ASSEMBLY
26
N000471016001
LOCK RING , Replaced By: A0079942041
29
A6202901816
PEDAL CLUTCH,5 238025
29
A6202900416
PEDAL , 415 5 014669 416 5 000516 417 4 972024, Replaced By: A6202900216
35
A1072910182
PAD BRAKE
38
A0119813410
NEEDLE BEARING
44
A3812910053
SPACER TUBE CLUTCH PEDAL
50
A3812940707
PIVOT PIN PEDAL TO BEARING BRACKET
56
N000471020001
LOCK RING
62
A3812910073
LOCK PEDAL TO BEARING BRACKET
68
A0019901204
SCREW , Replaced By: N910105006023
71
N000127006203
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
71
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
137
A6209930010
SPRING CLUTCH PEDAL RESET
