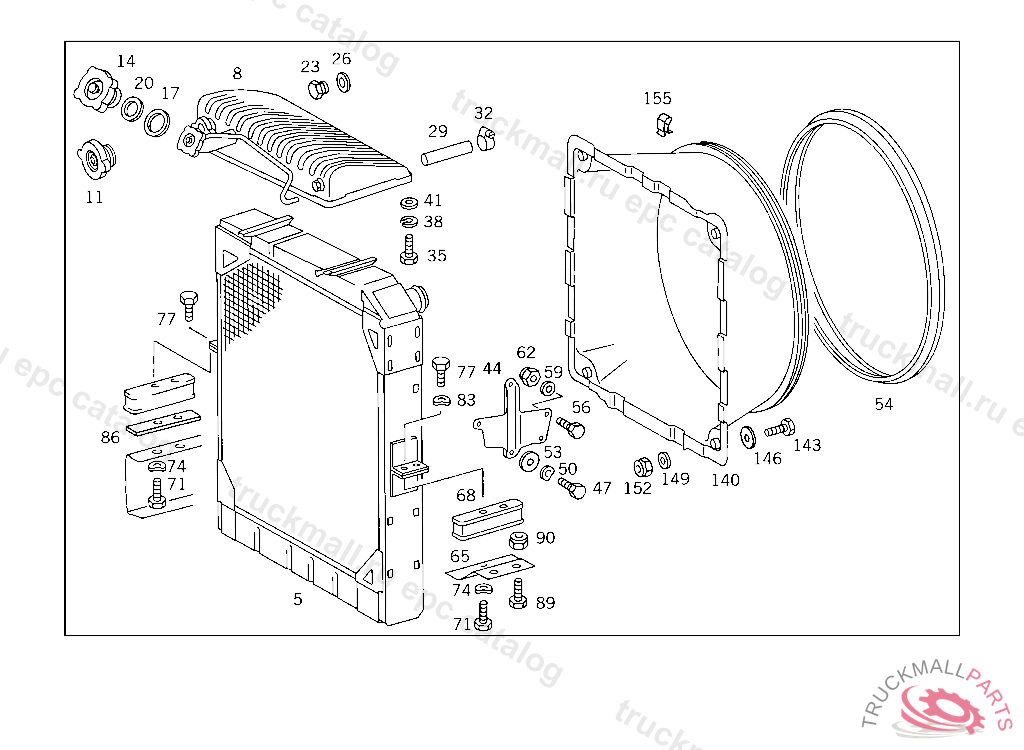

Поз.
Артикул
Описание
5
RADIATOR WATER BEHR
5
RADIATORKALE OTO RADYATOER A.S.
8
TANK ON RADIATOR
11
RADIATOR CAP CENTRAL
14
RADIATOR CAP FILLER NECK
17
GASKET O.D., 52 MM
20
GASKET O.D., 37 MM
23
SCREW PLUG WATER DRAIN
26
SEAL RING FUEL LINE TO FEED PUMP
29
HOSE OVERFLOW, EXPANSION TANK
32
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
32
CLAMP , Replaced By: N916017011001
35
SCREW , Replaced By: N304017008016
35
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
38
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
41
WASHER , Replaced By: N000125008443
44
BRACKET OIL DIPSTICK GUIDE TUBE
47
SCREW PUMP TO BRACKET
47
SCREW LOCK SPRING TO CROSS MEMBER
50
SPRING WASHER LICENSE PLATE TO BRACKET
53
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
54
BOOT FAN SHROUD TO FAN RING
56
SCREW CLAMP TO BRACKET AND TO PIPE
59
WASHER , Replaced By: N000125008443
62
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
62
NUT , Replaced By: N913004008001
65
SUPPORT RADIATOR,LEFT
65
SUPPORT RADIATOR,RIGHT
68
RUBBER MOUNTING RADIATOR
71
SCREW , Replaced By: N304017010028
71
SCREW FUEL TANK TO CONSOLE
74
SPRING WASHER STEERING COLUMN BRACKET TO CAB
77
SCREW END PIECE TO EXHAUST PIPE M 10X25
83
WASHER , Replaced By: N000125010532
83
WASHER RADIATOR TO RUBBER MOUNTING
86
SHIM RADIATOR TO RIGHT RUBBER MOUNTING
89
SCREW EXHAUST PIPE TO BRACKET
90
NUT SUPPORT TO SIDE MEMBER
90
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
140
FAN SHROUD RADIATOR TO KALE OTO RADYATOER A.S.
140
FAN SHROUD RADIATOR
143
SCREW , Replaced By: N304017006016
146
WASHER , Replaced By: N009021006208
149
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
152
NUT , Replaced By: N913004006001
155
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
