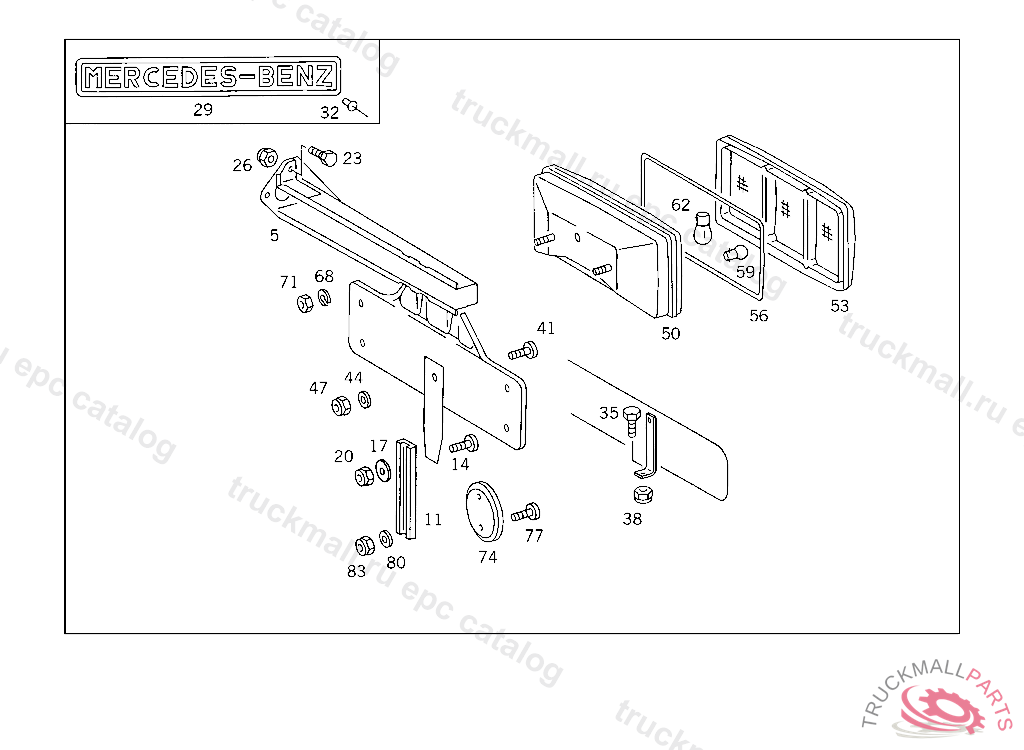

Поз.
Артикул
Описание
5
BRACKET RIGHT TAIL LAMP
5
BRACKET LEFT TAIL LAMP
11
BRACKET REFLECTOR
14
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
17
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
17
WASHER , Replaced By: N009021005205
20
NUT , Replaced By: N913004006001
23
SCREW BRACKET TO SIDE MEMBER
23
SCREW , Replaced By: N304017010002
26
NUT , Replaced By: N910113010000
29
NAME PLATE"OTOMARSAN"
32
RIVET NAME PLATE TO TAIL LAMP BRACKET
35
SCREW CLAMP TO BRACKET AND TO PIPE
38
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
38
NUT , Replaced By: N913004008001
41
SCREW LICENSE PLATE BRACKET
44
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
47
NUT , Replaced By: N913004006001
50
TAIL LAMP RIGHT,008337
50
TAIL LAMP LEFT,008337
53
LENS
56
GASKET
59
BULB , Replaced By: N072601024704
62
BULB TAIL LAMP 21 W
62
BULB , Replaced By: N072601024192
68
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
71
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
74
REFLECTOR
77
SCREW REFLECTOR TO BRACKET
80
WASHER BOOT TO CAB FLOOR
80
WASHER , Replaced By: N000433005304
83
NUT CONTROL UNIT TO APPARATUS PANEL
