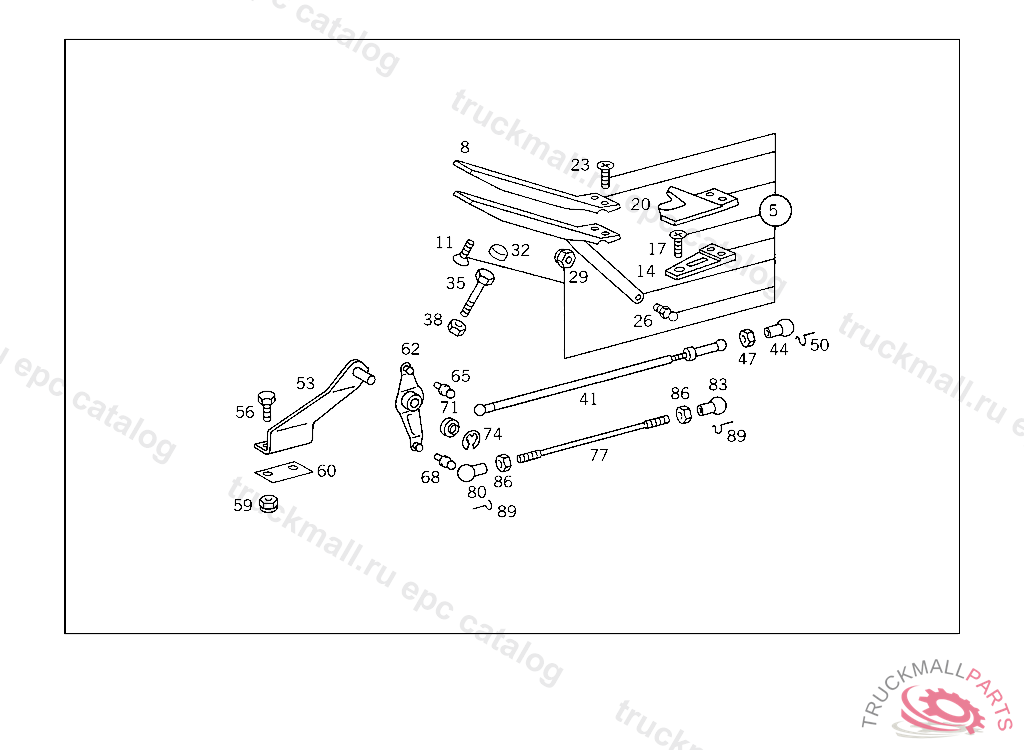

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL TO CAB M 6X20
20
BOOT ACCELERATOR PEDAL
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
26
BALL PIVOT LOAD SENSOR
29
NUT , Replaced By: N913004006001
32
STOP ACCELERATOR PEDAL
35
SCREW VALVE TO BRACKET, Replaced By: N304014008002
38
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
41
ROD LOAD SENSOR CONTROL
44
BALL SOCKET PULL ROD TO LEVER
47
NUT SPRING-LOADED PUSH ROD
47
NUT BALL PIVOT TO LEVER
50
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
53
BEARING BRACKET INTERMEDIATE BEARING
56
SCREW END PIECE TO EXHAUST PIPE M 10X25
59
NUT , Replaced By: N910113010000
62
LEVER INTERMEDIATE BEARING
62
LEVER , Replaced By: A6153000628
65
BALL STUD. BALL PIVOT TOP B10X4,5 MM
68
BALL PIVOT BOTTOM B13X5 MM
71
COVERING INTERMEDIATE BEARING
74
LOCK PLATE INTERMEDIATE BEARING
77
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
80
BALL SOCKET ROD TO BALL PIVOT
83
BALL SOCKET ROD TO BALL PIVOT
86
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
89
SECURING CLIP. CIRCLIP
999
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
