Mercedes A0005010110 - Шланг

1928 S OTOMARSAN/TUERKEI 371.305

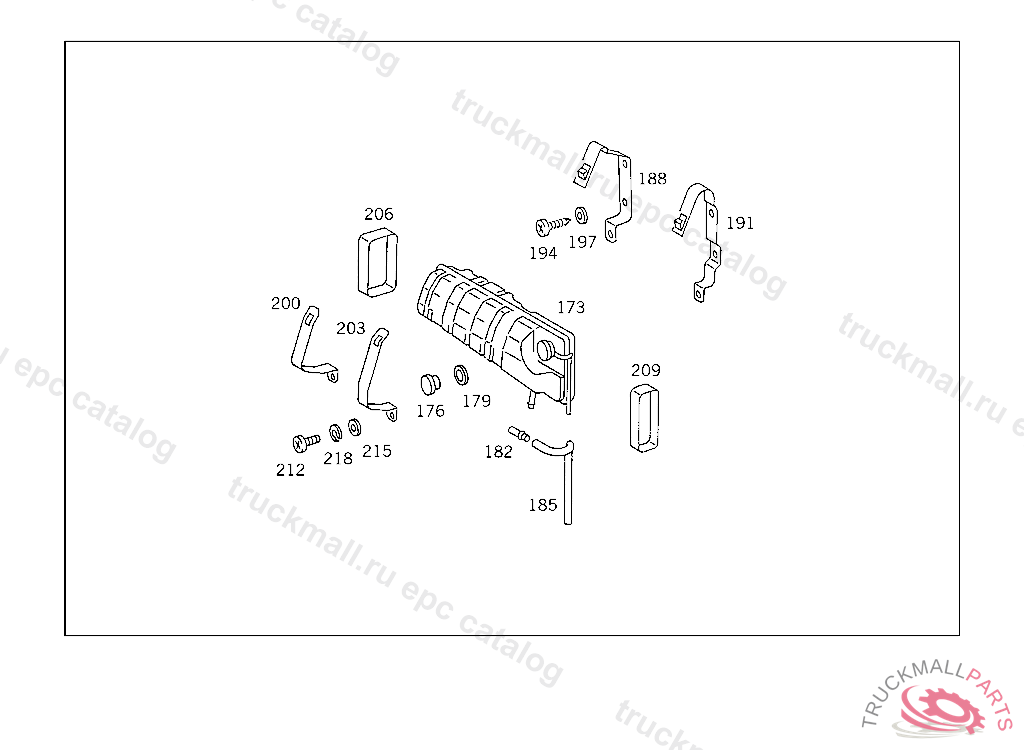

50 RADIATOR - 060 RADIATOR AND EXPANSION TANK IL. 4

Поз.
Артикул
Описание
173
A6205000149
TANK (EXPANSION TANK)
176
A0005014515
RADIATOR CAP
179
A0005010880
GASKET O.D., 37 MM
182
A0005010110
DRAIN PIPE EXPANSION TANK
185
A0139978682
HOSE OVERFLOW
188
A6205000031
BRACKET EXPANSION TANK
191
A6205000131
BRACKET EXPANSION TANK
191
A3715007131
BRACKET EXPANSION TANK,LEFT
194
N007981005306
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
197
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
200
A6205010320
STRAP EXPANSION TANK TO BRACKET
203
A6205010420
STRAP EXPANSION TANK TO BRACKET
206
A6205010195
SHIM EXPANSION TANK TO BRACKET
209
A6205010295
SHIM EXPANSION TANK TO BRACKET
212
N007985006193
SCREW , Replaced By: N000000001146
215
N009021006205
WASHER , Replaced By: N009021006208
218
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
