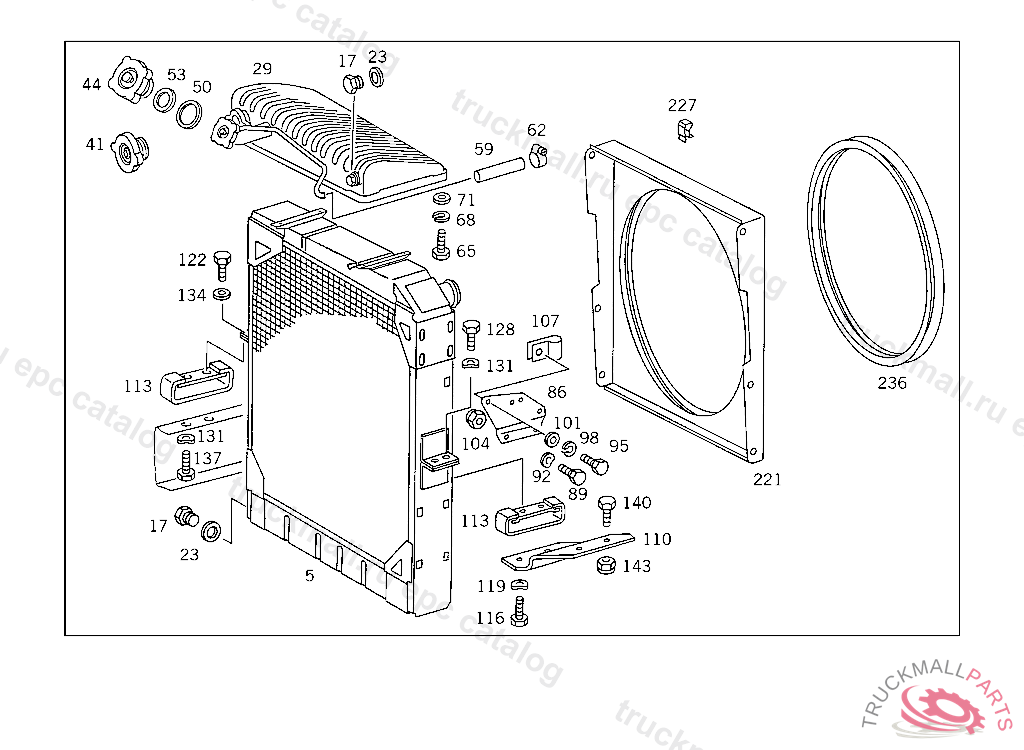

Поз.
Артикул
Описание
5
RADIATOR
17
SCREW PLUG WATER DRAIN
23
SEAL RING FUEL LINE TO FEED PUMP
29
TANK ON RADIATOR
41
RADIATOR CAP CENTRAL
44
RADIATOR CAP FILLER NECK
50
GASKET O.D., 52 MM
53
GASKET O.D., 37 MM
59
HOSE OVERFLOW, EXPANSION TANK
62
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
62
CLAMP , Replaced By: N916017011001
65
SCREW , Replaced By: N304017008016
65
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
68
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
71
WASHER , Replaced By: N000125008443
86
BRACKET , NOT USED
89
SCREW , Replaced By: N304017006016
92
SPRING WASHER LICENSE PLATE TO BRACKET
95
SCREW CLAMP TO BRACKET AND TO PIPE
98
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
101
WASHER REAR FOGLAMP TO BRACKET
110
SUPPORT RADIATOR,LEFT,K 096749
113
RUBBER MOUNTING RADIATOR
116
SCREW FUEL TANK TO CONSOLE
116
SCREW , Replaced By: N304017010028
119
SPRING WASHER STEERING COLUMN BRACKET TO CAB
122
SCREW END PIECE TO EXHAUST PIPE M 10X25
128
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
128
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
131
SPRING WASHER STEERING COLUMN BRACKET TO CAB
137
SCREW RIGHT SUPPORT TO RADIATOR,K 142907
140
SCREW CONSOLE TO SIDE MEMBER
143
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
143
NUT SUPPORT TO SIDE MEMBER
221
FAN SHROUD RADIATOR
227
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
236
BOOT FAN SHROUD TO FAN RING
