Поз.
Артикул
Описание

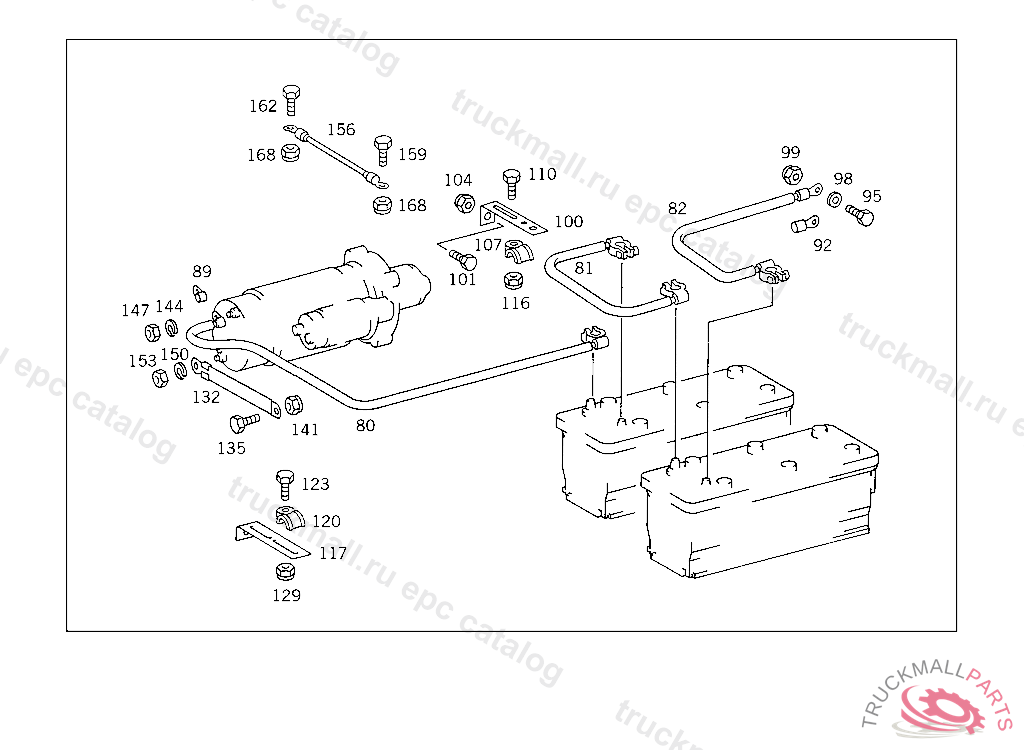

80
POSITIVE CABLE FROM BATTERY TO STARTING MOTOR
81
POS.CABLE , Replaced By: N072551070880, +001N072332013100, +001N072332013200
82
NEG. CABLE FROM BATTERY TO GROUND AT SIDE MEMBER
89
CABLE SHOE BATTERY CABLE 12-70 MM
92
CABLE SHOE BATTERY CABLE 10-70 MM
95
SCREW STRUT TO FRAME, LEFT
98
WASHER BRACKET TO COVERING
98
WASHER , Replaced By: N009021010209
99
NUT EXHAUST PIPE TO SIDE MEMBER
132
ELECTRIC CABLE FROM STARTING MOTOR TO SIDE MEMBER
135
SCREW BRACKET TO FRAME M 8X35
141
NUT BRACKET TO BRACKET
144
LOCK WASHER FITTING TO BRACKET
147
NUT BATTERY CABLE
150
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
150
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
153
NUT BALL SOCKET TO ROD
153
NUT BATTERY CABLE
156
NEG. CABLE FROM FRAME CROSS MEMBER TO CAB
156
ELECTRIC CABLE , Replaced By: A6205402339
156
ELECTRIC CABLE FROM FRAME CROSS MEMBER TO CAB
159
SCREW , Replaced By: N910142008009
162
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
168
NUT BRACKET TO BRACKET
168
NUT BRACKET TO BRACKET
