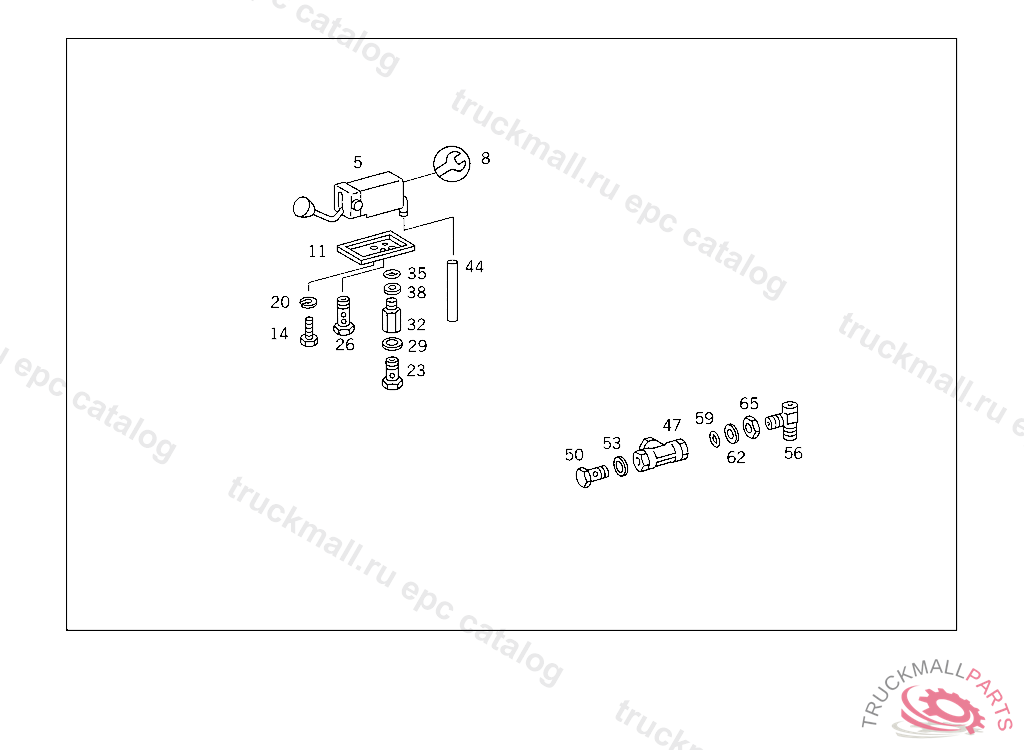

Поз.
Артикул
Описание
5
VALVE (EXTENSIBLE BRAKE VALVE)
8
REPAIR KIT EXTENSIBLE BRAKE VALVE
11
SHIM HAND BRAKE VALVE
14
SCREW AT FILTER BRACKET
20
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
23
HOLLOW SCREW , Replaced By: N915036010108
26
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
29
SEAL RING FUEL LINE TO FEED PUMP
32
ADAPTER FITTING EXTENSIBLE BRAKE VALVE,CONNECTIONS: "10,20"
35
SEAL RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
38
THRUST RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
44
HOSE HAND BRAKE VALVE BLEEDING 100 MM, ORDER BY THE METER
47
VALVE TWO-WAY
47
VALVE TWO-WAY
50
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
53
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
56
FITTING RELAY VALVE,CONNECTION "20",LEFT
59
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
62
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
65
NUT COMBINATION CYLINDER,CONNECTION: "12"
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
