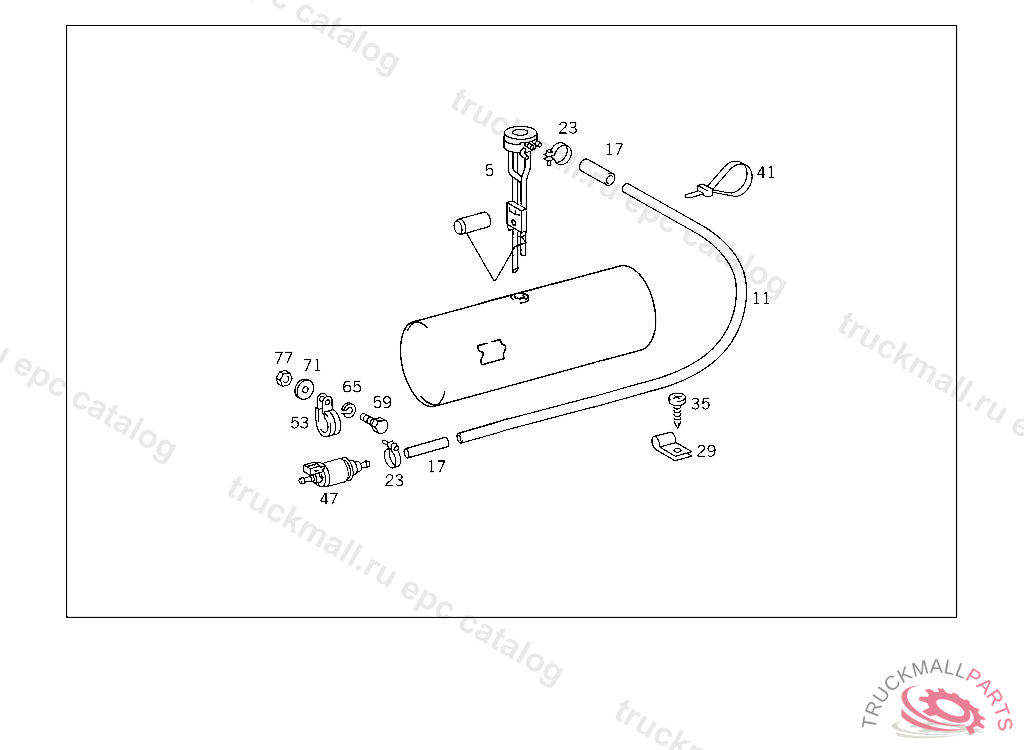

Поз.
Артикул
Описание
5
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
11
PLASTIC PIPE FUEL SYSTEM 6X2 MM, ORDER BY THE METER
11
PLASTIC PIPE FUEL SYSTEM 6X2 MM, ORDER BY THE METER
11
PLASTIC PIPE FUEL SYSTEM 6X2 MM, ORDER BY THE METER
17
HOSE LEAK LINE, ORDER BY THE METER
23
CLAMP LEAK LINE TO CONNECTOR AT ENGINE
23
CLAMP LINE MOUNTING
29
CLAMP , Replaced By: N916016010211
35
SHEET METAL SCREW GEAR INDICATOR TO INSTRUMENT PANEL
41
LOOM TIE365 MM
47
AUXILIARY PUMP
53
CLAMP PUMP TO BRACKET
59
SCREW BRACKET TO CROSS MEMBER M 6X35
65
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
71
WASHER , Replaced By: N009021006208
77
NUT SPRING-LOADED PUSH ROD
77
NUT BALL PIVOT TO LEVER
