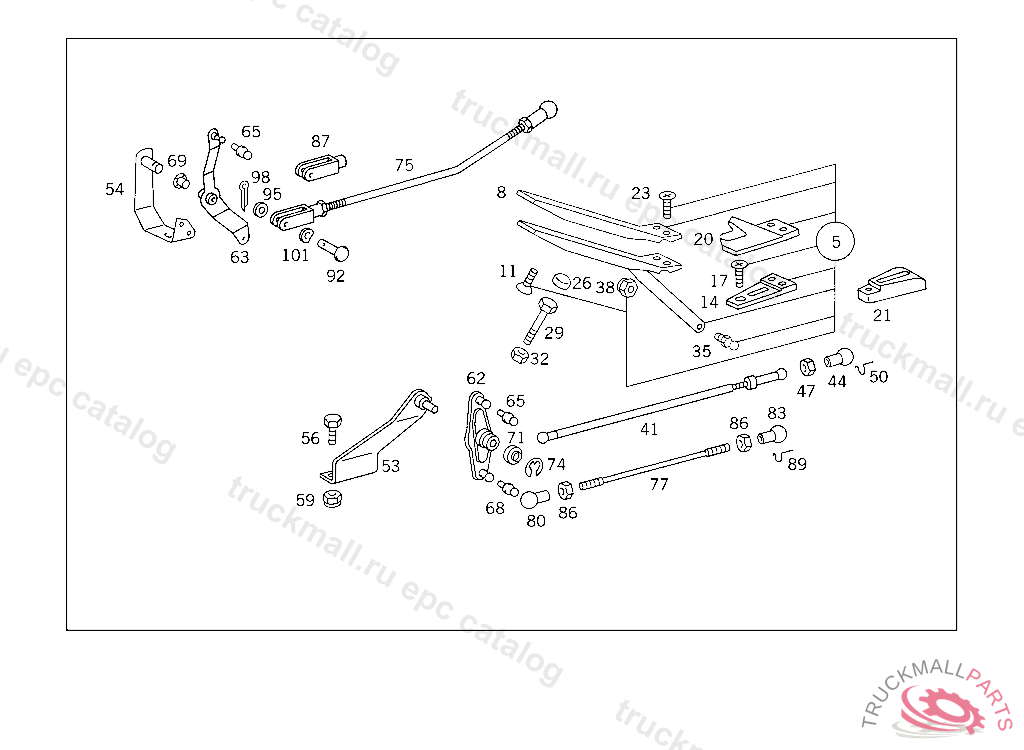

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW PEDAL TO CAB FLOOR
20
BOOT ACCELERATOR PEDAL
21
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
26
STOP ACCELERATOR PEDAL
29
SCREW VALVE TO BRACKET, Replaced By: N304014008002
32
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
35
BALL PIVOT LOAD SENSOR
38
NUT AT FILTER BRACKET
41
ROD LOAD SENSOR CONTROL
44
BALL SOCKET PULL ROD TO LEVER
47
NUT BALL SOCKET TO ROD
50
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
53
BEARING BRACKET INTERMEDIATE BEARING
56
SCREW END PIECE TO EXHAUST PIPE M 10X25
59
NUT EXHAUST PIPE TO SIDE MEMBER
62
LEVER INTERMEDIATE BEARING
65
BALL STUD. BALL PIVOT TOP B10X4,5 MM
68
BALL PIVOT BOTTOM B13X5 MM
71
COVERING INTERMEDIATE BEARING
74
LOCK PLATE INTERMEDIATE BEARING
77
ROD , Replaced By: N900331008421
77
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
80
BALL SOCKET ROD TO BALL PIVOT
83
BALL SOCKET ROD TO BALL PIVOT
86
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
87
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
89
SECURING CLIP. CIRCLIP
