Поз.
Артикул
Описание

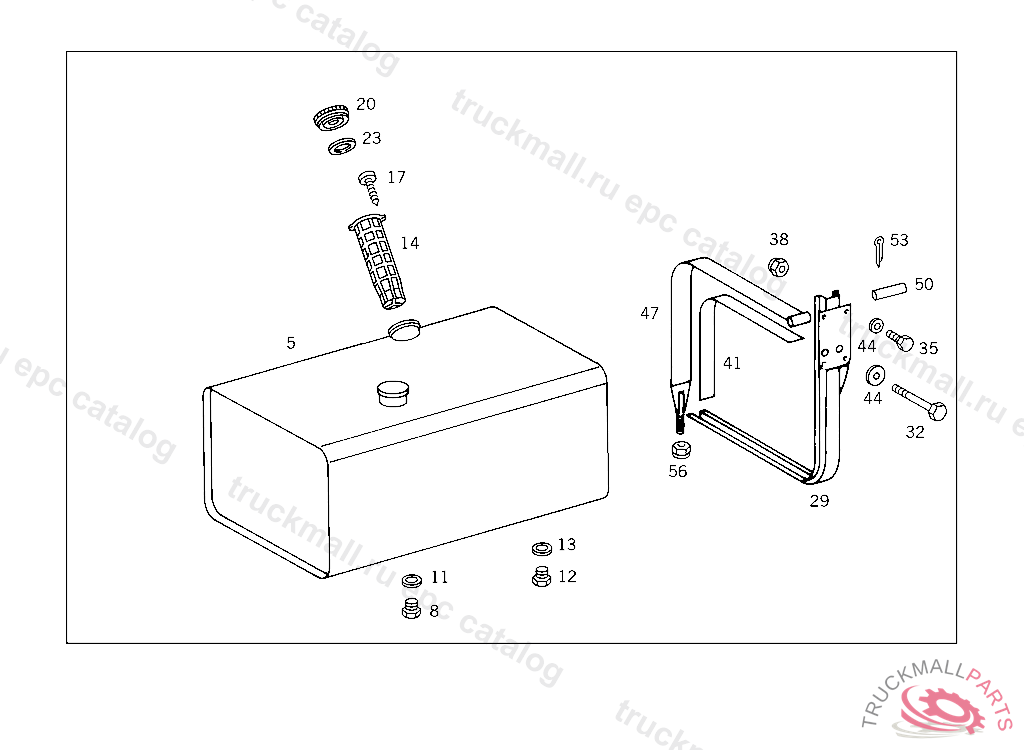

5
FUEL TANK400 L.,4 399369
8
SCREW PLUG AT TANK
11
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
12
SCREW PLUG , Replaced By: N007604014110
13
SEAL RING FUEL LINE TO FEED PUMP
14
FUEL STRAINER FILLER NECK,5 052323
14
FUEL STRAINER FILLER NECK,5 052323
17
SHEET METAL SCREW , Replaced By: N007981004339
17
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
20
FILLER CAP , Replaced By: A0004700305
20
FILLER CAP
23
SEAL RING
29
SUPPORT FUEL TANK, VERSION A VERSION B
29
SUPPORT FUEL TANK TO FRAME
32
SCREW BRACKET TO SIDE MEMBER M 14X55,5 543914
35
SCREW BRACKET TO SIDE MEMBER,5 597425
35
SCREW , Replaced By: N910105014019
38
NUT PARTICLE FILTER M14
41
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
47
STRAP FUEL TANK TO SUPPORT
50
PIN STRAP TO SUPPORT
53
COTTER PIN STRAP TO SUPPORT
56
NUT STRAP TO SUPPORT
