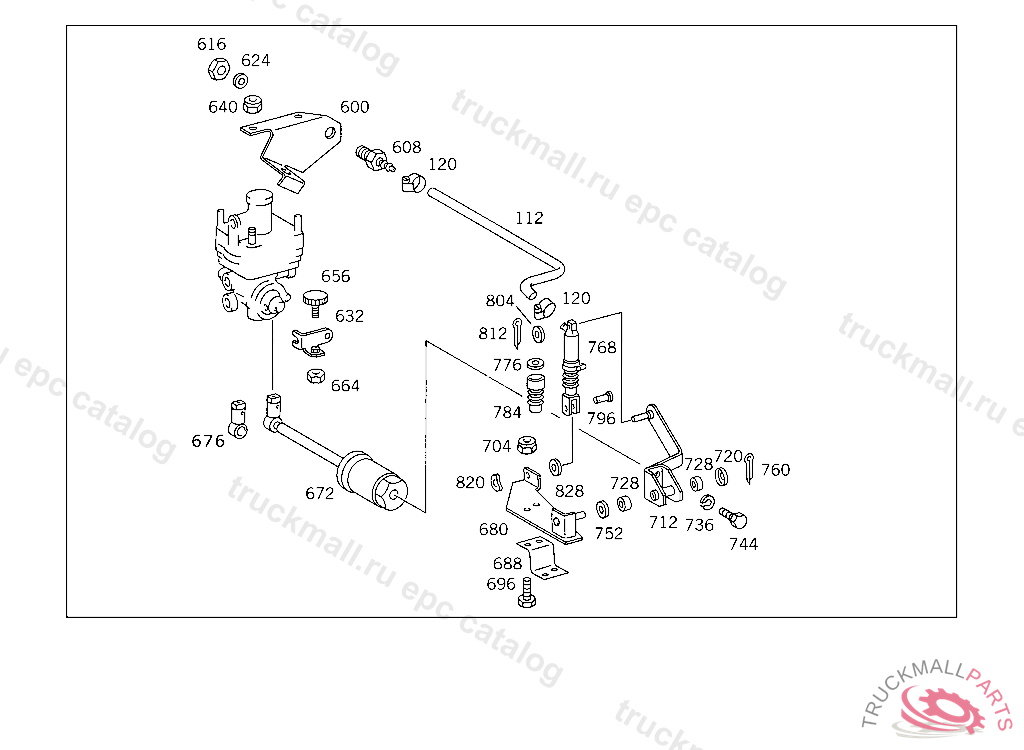

Поз.
Артикул
Описание
112
BRAKE HOSE FROM FITTING TO REAR AXLE ONE-CIRCUIT PISTON CYLINDER 450 MM
120
CLAMP HOSE TO FITTING
600
BRACKET HOSDE TO FRAME
608
FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
616
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
624
WASHER STRAP TO SUPPORT
632
BRACKET LEVER
640
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
640
NUT , Replaced By: N913004008001
656
KNURLED HEAD SCREW PRESSURE SWITCH
664
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
672
METAL SPRING BELLOWS BRAKE POWER REGULATOR CONTROL,K 049886
672
METAL SPRING BELLOWS ,4 9579425 498312
676
BALL SOCKET PULL ROD
680
BRACKET METAL SPRING BELLOWS
688
BRACKET METAL SPRING BELLOWS TO BRACKET
696
BOLT. SCREW QUICK-RELEASE VALVE TO BRACKET
704
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
704
NUT , Replaced By: N913004008001
712
CONSOLE METAL SPRING BELLOWS
720
COVERING , Replaced By: A6153010088
720
COVERING , Replaced By: A4073015088
728
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
736
LOCK WASHER CONSOLE TO SUPPORT
744
SCREW , Replaced By: N308676012012
752
WASHER METAL SPRING BELLOWS TO BRACKET
760
COTTER PIN ENGINE CONTROL
768
CYLINDER METAL SPRING BELLOWS,REAR AXLE I
776
SEAL RING
776
SEAL RING , Replaced By: A0239975247
784
BOOT
796
PIN ROD TO LEVER
804
WASHER , Replaced By: N000125008443
812
COTTER PIN
820
SPRING WASHER CABLE TO ALTERNATOR
828
WASHER BRACKET TO FENDER BRACKET
999
BRACKET METAL SPRING BELLOWS
