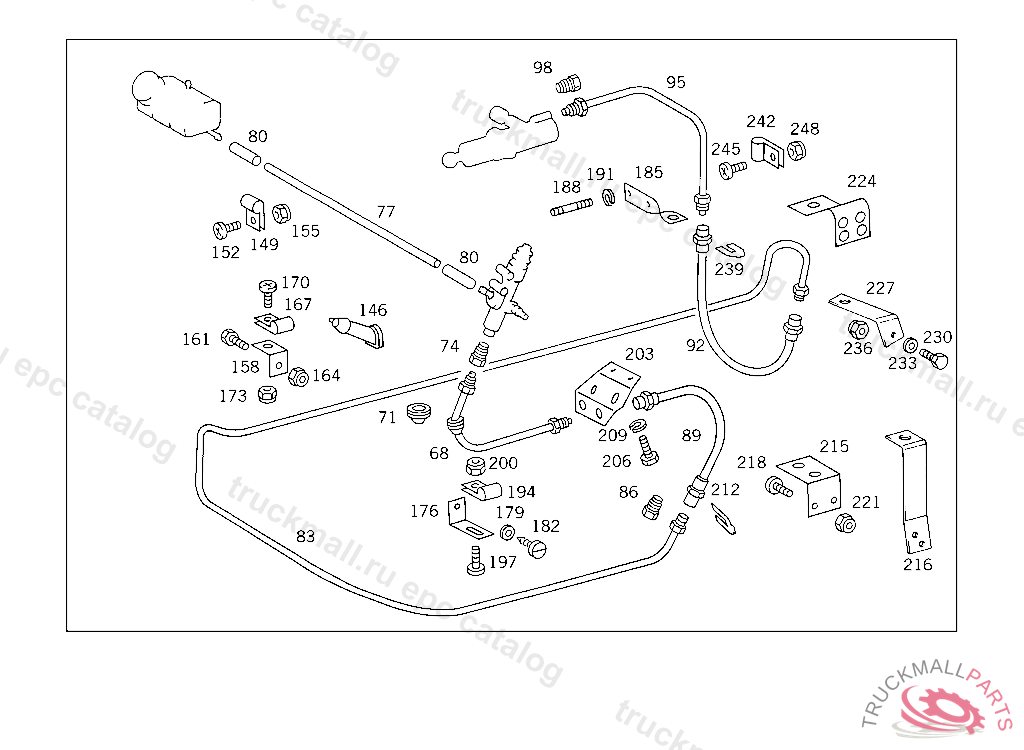

Поз.
Артикул
Описание
68
LINE , Replaced By: A3812903214
71
GROMMET BATTERY CASE
74
UNION SCREW
77
PIPE WITH BEAD, MASTER CYLINDER COUPLING TO EXPANSION RESERVOIR 10X700 MM
80
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
83
LINE FROM FAN SHROUD BRACKET TO FITTING 2500 MM
86
UNION SCREW
89
HOSE FROM BRACKET UNDER CAB FLOOR TO OIL TANK BRACKET 555 MM
89
HOSE FROM BRACKET UNDER CAB FLOOR TO OIL TANK BRACKET 555 MM
95
LINE HYDRAULIC HOSE TOWARDS CLUTCH BOOSTER 800 MM,5 401291 TO BE ADAPTED DURING ASSEMBLY
98
UNION SCREW
146
GROMMET CLUTCH LINE THRU CAB WINDOW SILL
149
CLAMP LINE MOUNTING
152
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
155
NUT AT FILTER BRACKET
158
ANGLE LINE MOUNTING
161
SCREW BRACKET TO FRAME M 8X35
164
NUT BRACKET TO BRACKET
167
CLAMP , Replaced By: A3604300143
170
SCREW , Replaced By: N000000001146
173
NUT AT FILTER BRACKET
176
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
179
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
182
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
185
BRACKET , Replaced By: A3094921441
188
STUD BOLT BRACKET TO TRANSMISSION
191
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
194
CLAMP LINE MOUNTING
197
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
200
NUT AT FILTER BRACKET
203
BRACKET
203
BRACKET HYDRAULIC LINE TO CAB FLOOR
206
SCREW , Replaced By: N910105006023
209
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
212
BRACKET. LOCK , Replaced By: A6525040038
215
BRACKET OIL TANK
218
SCREW , Replaced By: N000000001146
221
NUT AT FILTER BRACKET
224
BRACKET CLUTCH HOSE TO FENDER BRACKET
239
BRACKET. LOCK , Replaced By: A6525040038
242
CLAMP , Replaced By: A3604300143
245
CLAMP , Replaced By: A3604300143
248
NUT AT FILTER BRACKET
