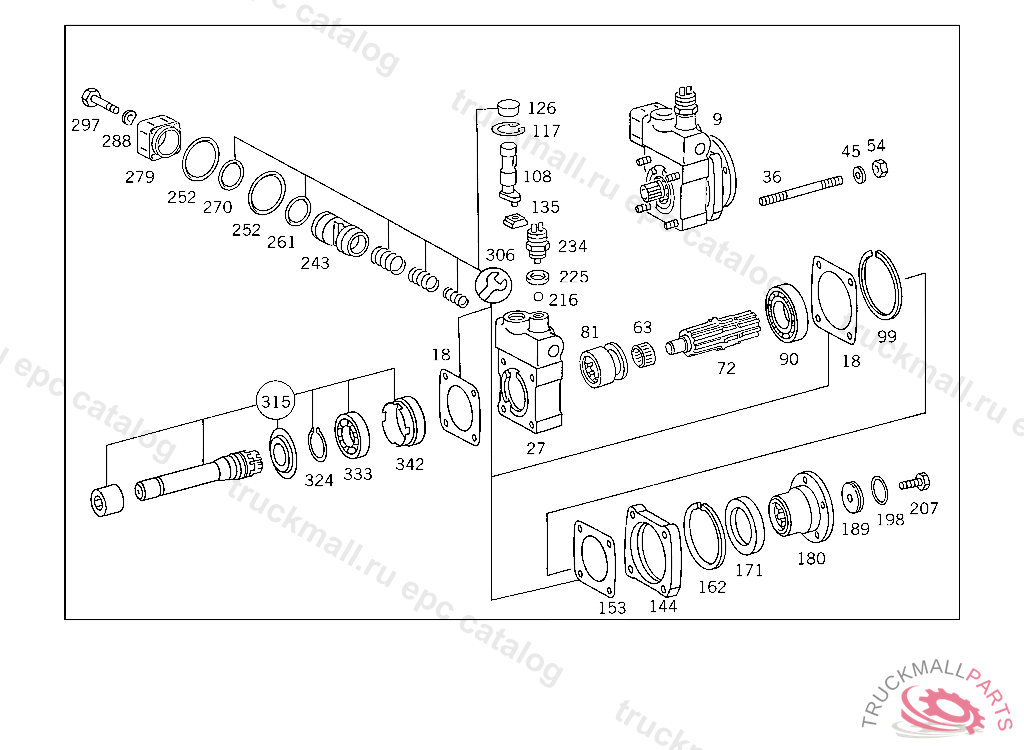

Поз.
Артикул
Описание
9
P.T.O.N 71/1B
18
GASKET CASE,REAR
27
HOUSING P.T.O. TO N 71/1B
36
STUD SHIFT CASE TO TRANSMISSION
45
WASHER COVER TO P.T.O. CASE
54
NUT COVER TO FLANGE
63
NEEDLE BEARING P.T.O.
72
DRIVE SHAFT
81
SLIDING COLLAR P.T.O.
90
CYLINDR. ROLLER BEARING DRIVE SHAFT
99
SNAP RING DRIVE SHAFT
108
SHIFT LEVER P.T.O.
117
LOCK RING SHIFT LEVER UPPER PART TO N 71/1B
126
EXPANSION PLUG ROD END
135
SLIDE P.T.O. SHIFT LEVER
144
INTERMEDIATE FLANGE OUTPUT FLANGE
153
GASKET CASE,REAR
162
RETAINING RING. LOCK RING BEARING TO DRIVE SHAFT
171
SEAL RING REAR P.T.O.
180
COUPLING FLANGE
189
SHIM FLANGE TO TRANSMISSION CASE COVER
198
SEAL RING FLANGE TO TRANSMISSION CASE COVER
207
SCREW BRACKET TO SIDE MEMBER M 12X40
216
BALL10 MM
225
SEAL RING SWITCH TO CASE COVER
234
SWITCH GEAR CLUSTER INDICATION
243
PISTON , Replaced By: A0002641315, +001A0002601039, +001A0002640127
243
PISTON P.T.O. SHIFTING CYLINDER
243
PISTON P.T.O. SHIFTING CYLINDER
252
RING PISTON TO N 71/1B
261
SEAL RING P.T.O. SHIFTING CYLINDER
270
SEAL RING P.T.O. SHIFTING CYLINDER
279
CYLINDER , Replaced By: A0002640127, +001A0002601039, +001A0002641315
279
CYLINDER P.T.O.
279
CYLINDER P.T.O.
288
SPRING WASHER LICENSE PLATE TO BRACKET
297
SCREW CONNECTOR
306
REPAIR KIT SHIFTING CYLINDER
306
SHIFTING CYLINDER P.T.O. SHIFTING CYLINDER
315
CONNECTG.PARTS,DELY.RANGE P.T.O.
324
LOCK RING SHAFT TO TRANSMISSION CASE
333
GROOVED BALL BEARING CONNECTING PARTS
342
BUSHING SHAFT TO TRANSMISSION CASE
