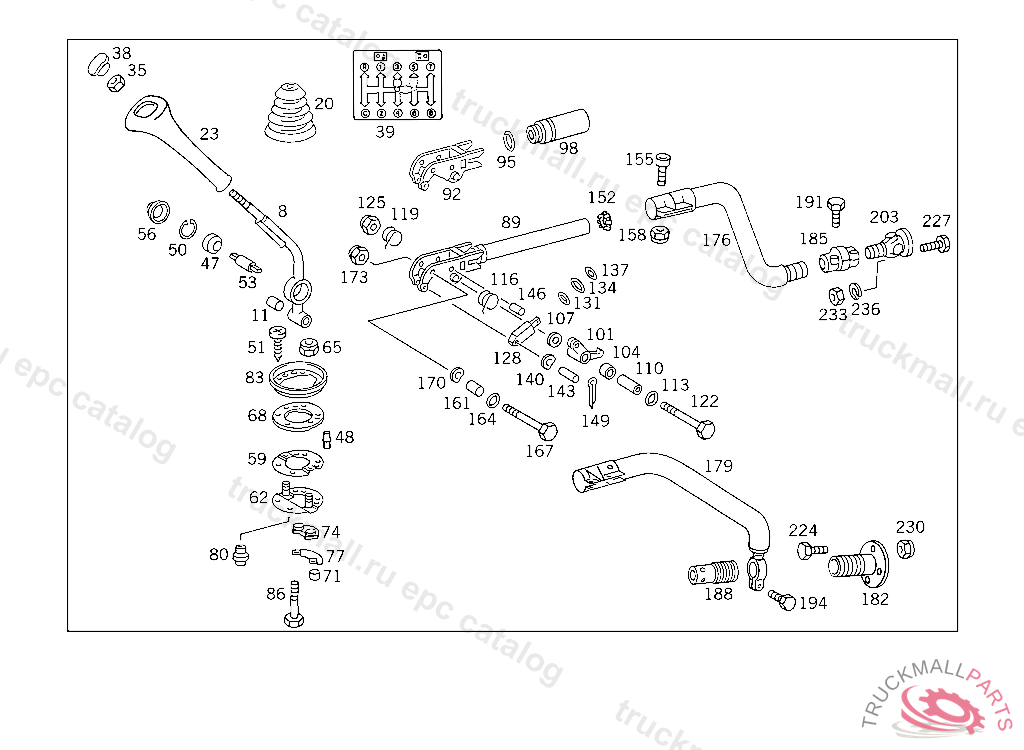

Поз.
Артикул
Описание
8
SHIFT LEVER
8
SHIFT LEVER ,K 131522
11
BUSHING PAWL TO ROD END,5 443047
20
BOOT SHIFTING ROD
20
BOOT SHIFTING LEVER
23
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
35
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
38
COVER SHIFT LEVER KNOB LESS GEARSHIFT DIAGRAM
38
COVER 6-SPEED,SHIFT LEVER KNOB
39
GUMMED LABEL NINE-SPEED,ASHTRAY,5 032516
47
JOINT BEARING SHIFT LEVER BEARING,K040603
47
JOINT BEARING SHIFT LEVER BEARING,K040603
48
BUSHING COMPRESSED AIR LINE THRU CAB FLOOR,K040603
50
LOCK RING SHIFT LEVER BEARING
51
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
53
PIN SHIFT LEVER BEARING,K040603
53
PIN SHIFT LEVER BEARING,K 040604
56
BOOT SHIFT LEVER BEARING
59
BRACKET SHIFT LEVER UPPER PART,K 040604
59
BRACKET SHIFT LEVER UPPER PART,K040603
62
BRACKET SHIFT LEVER LOWER PART,K040603
62
BRACKET SHIFT LEVER LOWER PART,K 040604
65
NUT BRACKET TO BRACKET
68
RUBBER PAD SHIFT LEVER TO CAB FLOOR,K040603
71
TUBE. BUSHING CAB FLOOR COVERING
74
RUBBER PAD SHIFT LEVER BEARING TO CAB FLOOR
77
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
83
BRACKET BOOT
86
SCREW , Replaced By: N910142008009
86
SCREW BRACKET TO FRAME M 8X35
89
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
89
SHIFTING ROD (TELESCOPIC SHIFTING ROD),K 131522
92
ROD END HYDRAULIC RELEASE
95
SEAL RING HYDRAULIC RELEASE
98
CONNECTOR REAR SHIFTING ROD TO CONNECTOR
101
PAWL SHIFTING ROD,5 443048
104
BUSHING PAWL TO ROD END,5 443048
107
BUSHING PAWL TO ROD END,5 443048
110
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
113
ROUND CORD RING. SEAL RING ROD END
116
SPRING ROD END
119
SPRING ROD END
122
SCREW BRACKET TO BEARING BRACKET,K 274033
125
NUT EXHAUST PIPE TO SIDE MEMBER
128
SHIFTING CYLINDER HYDRAULIC RELEASE WABCO
128
SHIFTING CYLINDER HYDRAULIC RELEASE TECHNOMATIK
131
SEAL RING PISTON RINGS WABCO
134
SEAL RING SCREW FITTING WABCO
137
SEAL RING OUTSIDE WABCO
140
SPRING WASHER SHIFTING CYLINDER TO YOKE
143
PIN SHIFTING CYLINDER TO YOKE 8X45 MM
146
PIN SHIFTING CYLINDER TO PAWL 8X20 MM
149
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
155
SCREW FRONT SHIFTING ROD TO REAR SHIFTING ROD
158
NUT EXHAUST PIPE TO SIDE MEMBER
161
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
164
ROUND CORD RING. SEAL RING ROD END
167
SCREW BRACKET TO BEARING BRACKET,K 274033
170
SPRING WASHER SHIFTING ROD TO SHIFT LEVER
173
NUT EXHAUST PIPE TO SIDE MEMBER
179
SHIFTING ROD REAR
188
CONNECTOR , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6172680028
194
SCREW BRACKET TO SIDE MEMBER M 14X40
203
JOINT SHIFTING ROD TO TRANSMISSION
203
JOINT SHIFTING ROD TO TRANSMISSION
227
SCREW SHIFTING ROD TO TRANSMISSION
233
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
236
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST PIPE TO BRACKET
