Поз.
Артикул
Описание
5

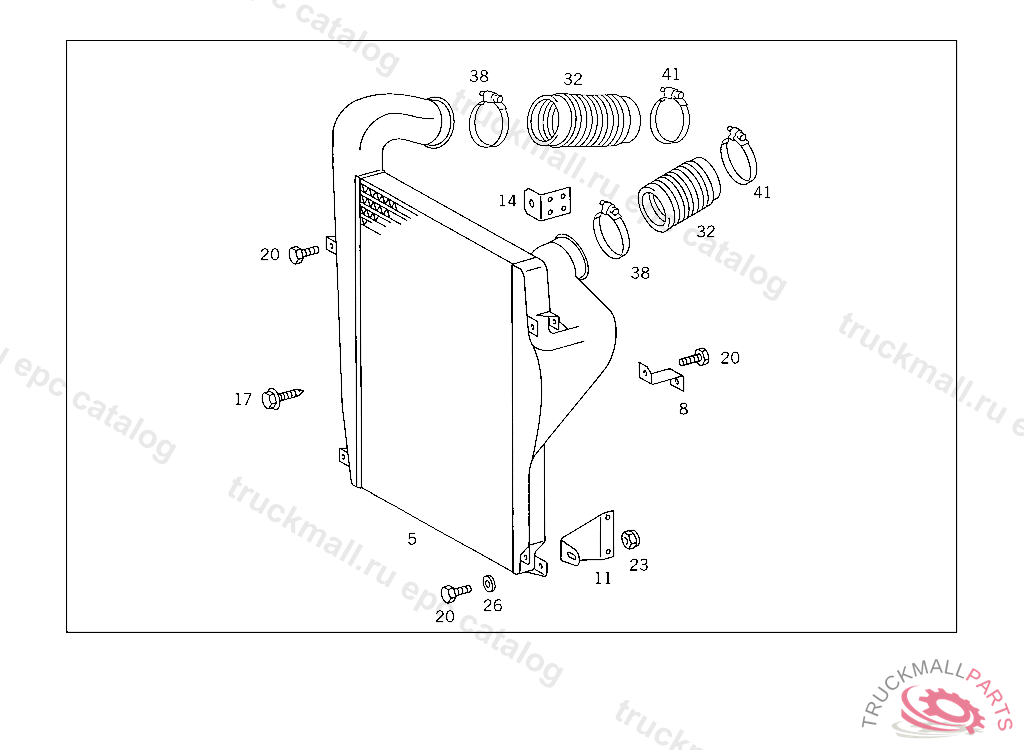

RADIATOR (CHARGING AIR INTERCOOLER)
5
RADIATOR ON WATER COOLER
5
RADIATOR , Replaced By: A6565010001
5
RADIATOR , Replaced By: A6565010201
8
BRACKET CHARGING AIR INTERCOOLER,RIGHT BOTTOM
11
BRACKET CHARGING AIR INTERCOOLER,RIGHT TOP
14
BRACKET CHARGE AIR INTERCOOLER
17
SCREW DE-AERATION LINE TO RADIATOR
20
SCREW , Replaced By: N910143008002
20
SCREW , Replaced By: N910142008001
23
NUT BRACKET TO BRACKET
26
WASHER , Replaced By: N009021008213
32
HOSE FROM CHARGING AIR INTERCOOLER TO ENGINE
32
HOSE FROM CHARGING AIR INTERCOOLER TO ENGINE
32
HOSE , Replaced By: A0020945282
38
CLAMP AIR INTAKE PIPE TO ENGINE "100"
38
CLAMP , Replaced By: A0059970690
41
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
999
WASHER TRAILER PLUG SOCKET TO BRACKET
999
WASHER EXHAUST MUFFLER TO STRAP
