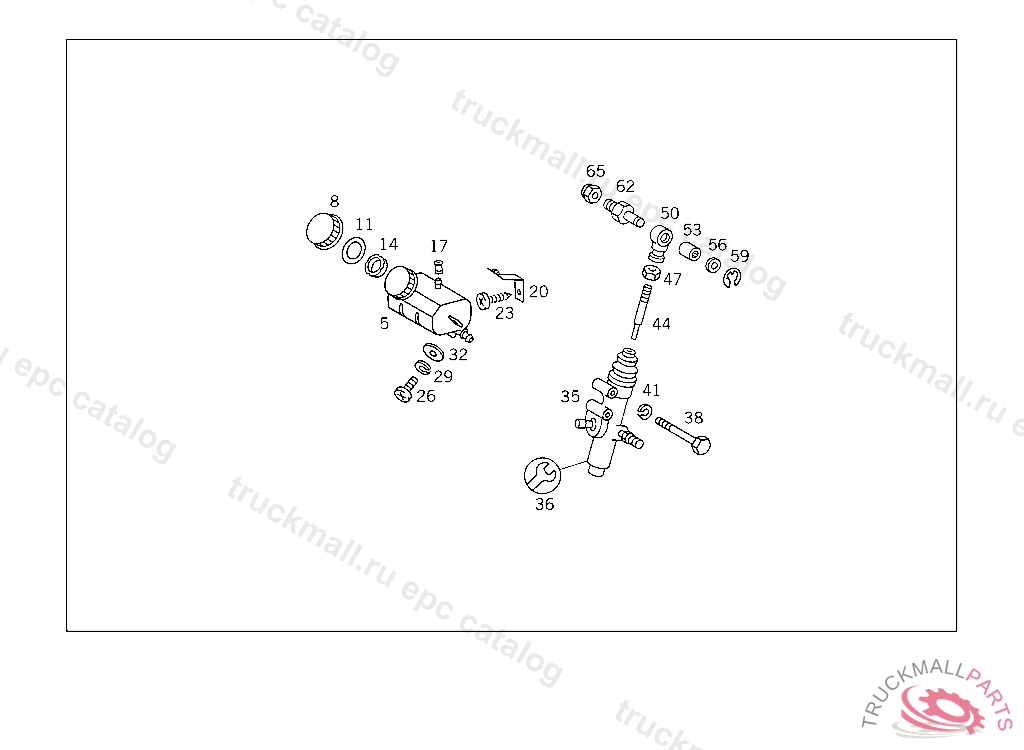

Поз.
Артикул
Описание
5
RESERVOIR RESERVOIR
8
LOCKING CAP
11
SEAL RING42X21.5 MM
11
SEAL RINGTEVES
14
STRAINER
17
CAP RESERVOIR DE-AERATION
20
BRACKET RESERVOIR
23
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
26
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
29
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
32
WASHER , Replaced By: N009021006208
35
MASTER CYLINDER CLUTCH,5 374582
36
REPAIR KIT TO MASTER CYLINDER HAVING SYNTHETIC PISTON, I.D., 20.6 MM, TO 001 295 71 06,5 374582
38
SCREW CYLINDER TO BRACKET
41
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
44
ROD MASTER CYLINDER
47
NUT OPERATING ROD
50
ARTICULATION PIECE CLUTCH MASTER CYLINDER
50
ARTICULATION PIECE CLUTCH MASTER CYLINDER
53
NEEDLE BEARING JOINT TO PIN
53
NEEDLE BEARING JOINT TO PIN
53
NEEDLE BEARING JOINT TO PIN
53
NEEDLE BEARING JOINT TO PIN
56
WASHER BRACKET TO CROSS MEMBER
59
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
62
PIN CLUTCH PEDAL,5 238024
65
NUT SWITCH TO FLOOR PLATE
