Поз.
Артикул
Описание
5

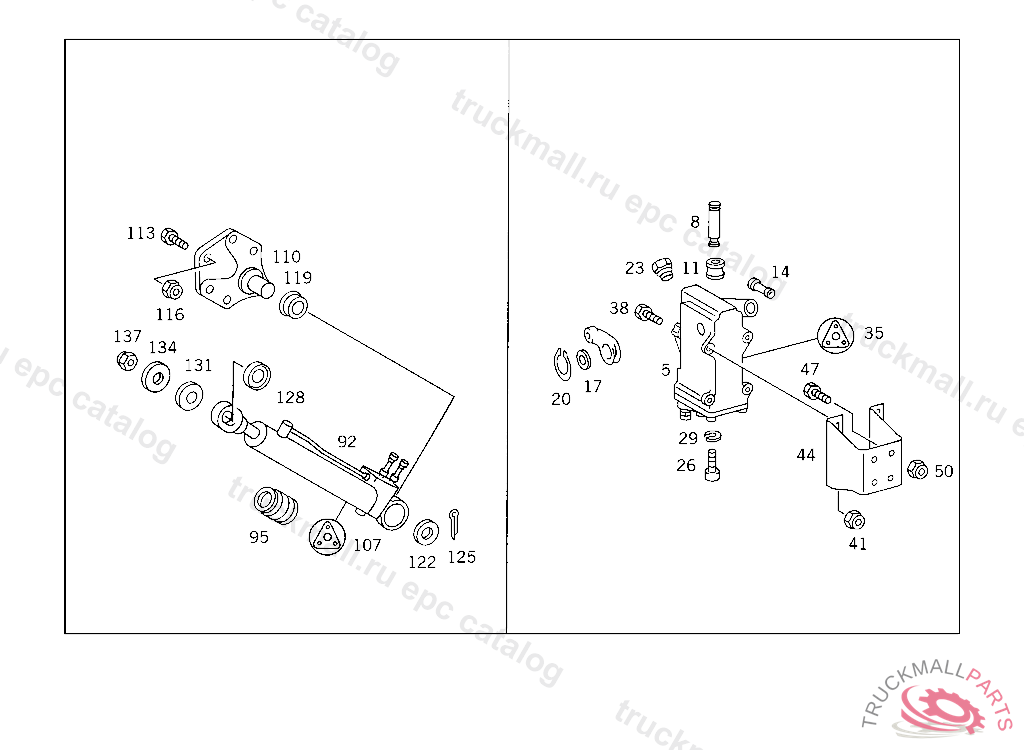

PUMP (HAND PUMP) WEBER
5
PUMP (HAND PUMP) ERGUN
5
PUMP (HAND PUMP) POWER PACKER
8
PISTONTO 000 553 79 01,WEBER
11
VALVETO 000 553 39 01,WEBER
14
FILTER
17
FITTED WASHER
20
LOCK RING
23
SCREW
23
SCREWTO 000 553 65 01,000 553 69 01,
26
SCREW , Replaced By: N000000000190
26
SCREW
29
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
35
REPAIR KIT HAND PUMP TO 000 553 65 01,000 553 69 01,
35
GASKET KIT HAND PUMP
38
SCREW EXHAUST PIPE TO SIDE MEMBER
41
NUT EXHAUST PIPE TO SIDE MEMBER
44
BRACKET HAND PUMP
47
SCREW , Replaced By: N910105014010
47
SCREW SUPPORT TO SIDE MEMBER M14X40
50
NUT PARTICLE FILTER M14
92
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
92
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACK
92
CYLINDER , Replaced By: A0015539605
92
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING ERGUN
95
GUIDEWEBER
107
GASKET KIT HYDRAULIC CYLINDER POWER PACKER
107
GASKET KIT HYDRAULIC CYLINDER WEBER
110
BEARING BRACKET HYDRAULIC CYLINDER
113
SCREW RIGHT FRONT RUBBER MOUNTING M16X1,5X50
113
SCREW TORSION BAR TO CONSOLE
116
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
119
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
122
WASHER HYDRAULIC CYLINDER TO CAB
125
COTTER PIN6,3X36 MM
128
WASHER HYDRAULIC CYLINDER TO CAB
131
WASHER HYDRAULIC CYLINDER TO CAB
134
WASHER HYDRAULIC CYLINDER TO CAB
137
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
999
HOSE , Replaced By: A6555530582
999
HOSE , Replaced By: A6555530582
