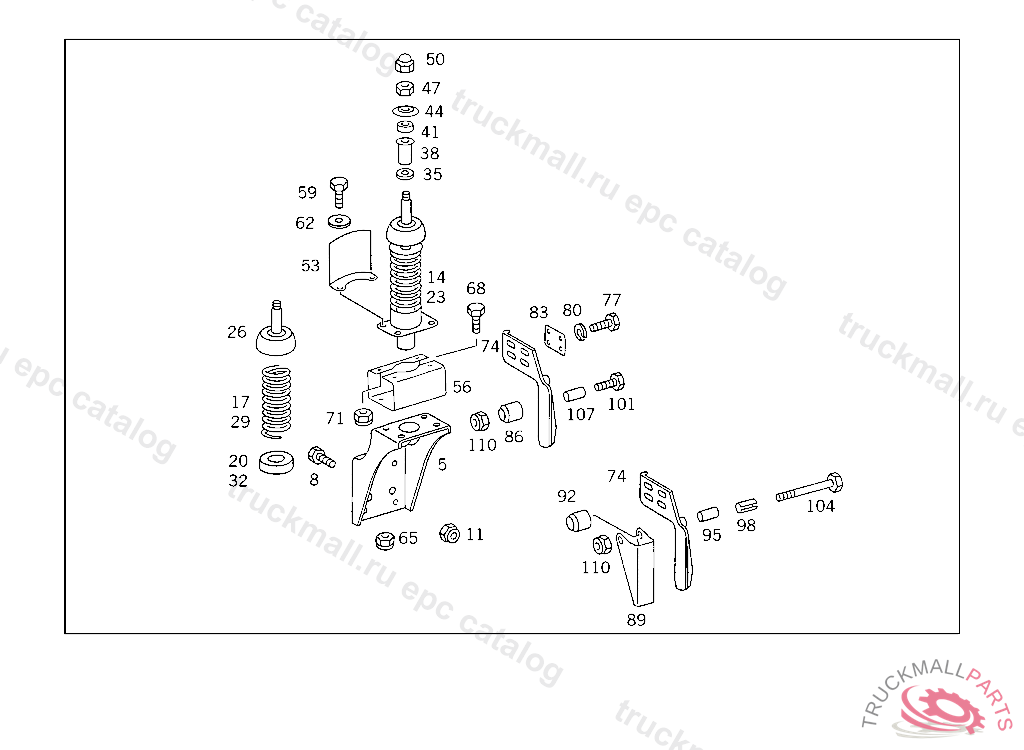

Поз.
Артикул
Описание
5
CONSOLE , Replaced By: A3873170001
5
CONSOLE CAB SUSPENSION
8
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
11
NUT STRAP TO SUPPORT
14
SHOCK ABSORBER
14
SHOCK ABSORBER , Replaced By: A6208900319
17
SPRINGTO 620 890 02 19
17
SPRINGTO 620 890 03 19
20
BUFFERTO 620 890 02 19
35
WASHER , Replaced By: N000433015005
38
SPACER TUBE SHOCK ABSORBER MOUNTING
41
RUBBER RING SHOCK ABSORBER MOUNTING
44
WASHER SHOCK ABSORBER MOUNTING
47
NUT SHOCK ABSORBER MOUNTING
50
CAP NUT VIBRATION ABSORBER
56
CLAMP VIBRATION ABSORBER
59
SCREW , Replaced By: N910142008009
62
WASHER , Replaced By: N009021008213
65
NUT BRACKET TO BRACKET
68
SCREW LINES TO BRACKET
68
SCREW BRACKET TO EXHAUST PIPE BRACKET
71
NUT BRACKET TO SIDE MEMBER
74
GUIDE CAB,LEFT, FOR USE WITH SHORT MERCEDES-BENZ CAB
74
GUIDE CAB, RIGHT, FOR USE WITH SHORT MERCEDES-BENZ CAB
74
GUIDE CAB,LEFT
74
GUIDE CAB, RIGHT
77
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
80
LOCK WASHER FITTING TO BRACKET
83
SHIM GUIDE TO CAB
89
BRACKET LATERAL GUIDE OF CAB, NOT USED
92
BUSHING LATERAL GUIDE OF CAB
95
SPACER TUBE LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
98
CLAMPING SLEEVE LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
104
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
110
NUT STRAP TO SUPPORT
