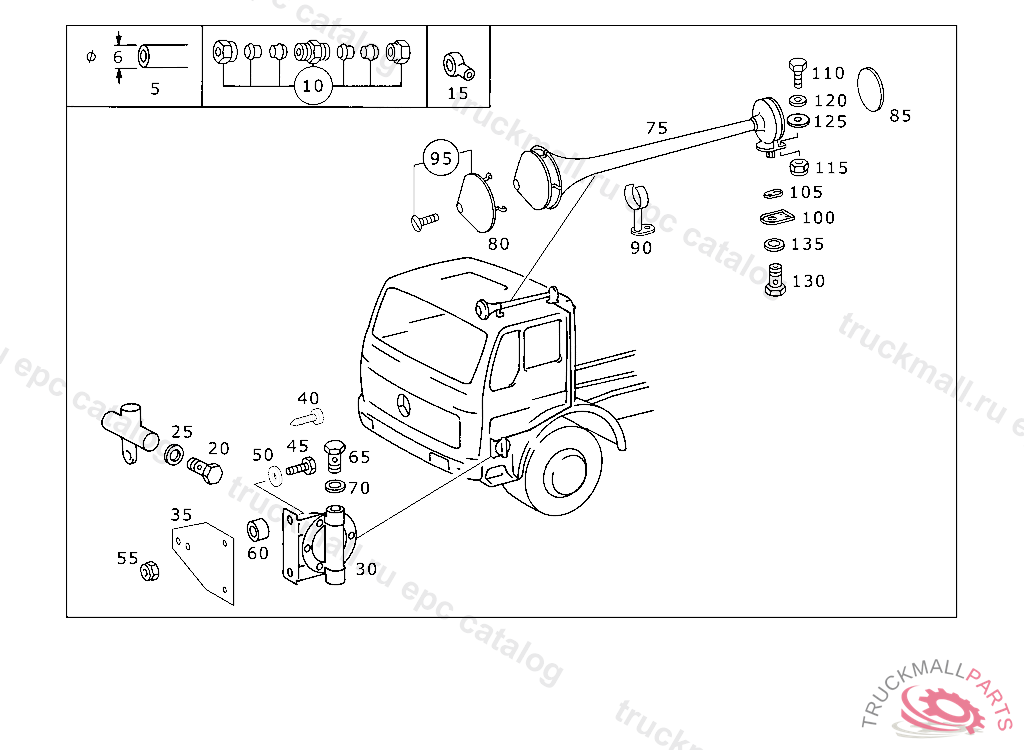

Поз.
Артикул
Описание
5
PLASTIC PIPE RISING PIPE 4X6 MM
5
PLASTIC PIPE RISING PIPE 4X6 MM
5
PLASTIC PIPE RISING PIPE 4X6 MM
5
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
10
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
15
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
15
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
15
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
20
HOLLOW SCREW HEATING CONNECTION
25
SEAL RING LINE CONNECTION
30
VALVE (TWO-/TWO WAY SOLENOID VALVE),AIR HORN
30
VALVE (3/2-WAY SOLENOID VALVE)
35
PLATE MOUNTING SOLENOID VALVE, KAN 54/00
40
SHEET METAL SCREW ANTINOISE CAPSULE TO CAB M 5.5X16
45
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M6X10
45
SCREW COVER PLATE TO BRACKET
50
WASHER COMPRESSED AIR LINE TO BRACKET
55
NUT , Replaced By: N913004006001
60
SPACER TUBE VALVE TO BRACKET
65
HOLLOW SCREW LINE CONNECTION
65
HOLLOW SCREW HEATING CONNECTION
70
SEAL RING LINE CONNECTION
70
SEAL RING LINE CONNECTION
75
AIR HORN LOW NOTE
75
AIR HORN , Replaced By: A0005424221
75
AIR HORN , Replaced By: A0005423521
75
AIR HORN HIGH NOTE
75
AIR HORN , Replaced By: A0005424321
75
AIR HORN , Replaced By: A0005423621
80
CAPTO 000 542 19 21/20 21
85
DIAPHRAGMTO 000 542 19 21/20 21
90
BRACKET HIGH-GRADE STEEL TO 000 542 42 21/43 21
90
BRACKET CHROMIUM PLATED TO 000 542 24 21/25 21/35 21/36 21
95
COVERING (PARTS KIT),AIR HORN HIGH-GRADE STEEL TO 000 542 42 21/43 21
95
COVERING (PARTS KIT),AIR HORN,CHROMIUM PLATED TO 000 542 24 21/25 21/35 21/36 21
100
SHIM HORN TO CAB ROOF
105
SHIM HORN TO CAB ROOF
110
SCREW , Replaced By: N304017006020
115
NUT , Replaced By: N913004006001
120
WASHER HORN TO CAB ROOF
125
WASHER COMPRESSED AIR LINE TO BRACKET
130
HOLLOW SCREW HEATING CONNECTION
135
SEAL RING LINE CONNECTION
999
SHIM
999
BRACKET
999
WASHER , Replaced By: N009021006208
