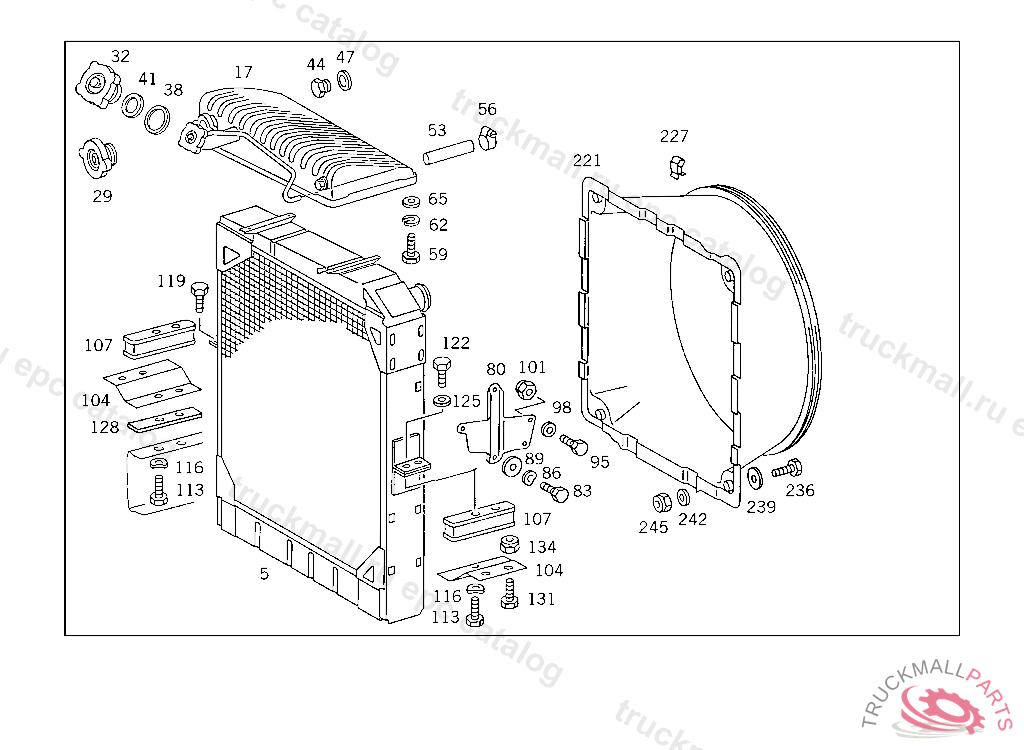

Поз.
Артикул
Описание
5
RADIATORKALE OTO RADYATOER A.S.
5
RADIATOR WATER BEHR
17
TANK ON RADIATOR
29
RADIATOR CAP CENTRAL
32
RADIATOR CAP FILLER NECK
38
GASKET O.D., 52 MM
41
GASKET O.D., 37 MM
44
SCREW PLUG WATER DRAIN
47
SEAL RING FUEL LINE TO FEED PUMP
53
HOSE OVERFLOW, EXPANSION TANK
56
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
56
CLAMP , Replaced By: N916017011001
59
SCREW , Replaced By: N304017008016
59
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
62
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
65
WASHER , Replaced By: N000125008443
80
BRACKET OIL DIPSTICK GUIDE TUBE
83
SCREW AT FILTER BRACKET
86
SPRING WASHER LICENSE PLATE TO BRACKET
89
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
95
SCREW CLAMP TO BRACKET AND TO PIPE
98
WASHER , Replaced By: N000125008443
101
NUT BRACKET TO BRACKET
104
SUPPORT RADIATOR,LEFT
104
SUPPORT RADIATOR,RIGHT
107
RUBBER MOUNTING RADIATOR
113
SCREW RIGHT SUPPORT TO RADIATOR,K 142907
116
SPRING WASHER RUBBER MOUNTING TO SUPPORT
119
SCREW END PIECE TO EXHAUST PIPE M 10X25
122
SCREW EXHAUST PIPE TO BRACKET
125
WASHER RADIATOR TO RUBBER MOUNTING
125
WASHER , Replaced By: N000125010532
128
SHIM RADIATOR TO RIGHT RUBBER MOUNTING
131
SCREW EXHAUST PIPE TO BRACKET
134
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
134
NUT SUPPORT TO SIDE MEMBER
221
FAN SHROUD RADIATOR TO KALE OTO RADYATOER A.S.
221
FAN SHROUD RADIATOR
227
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
236
SCREW , Replaced By: N304017006016
239
WASHER , Replaced By: N009021006208
242
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
245
NUT AT FILTER BRACKET
