Поз.
Артикул
Описание

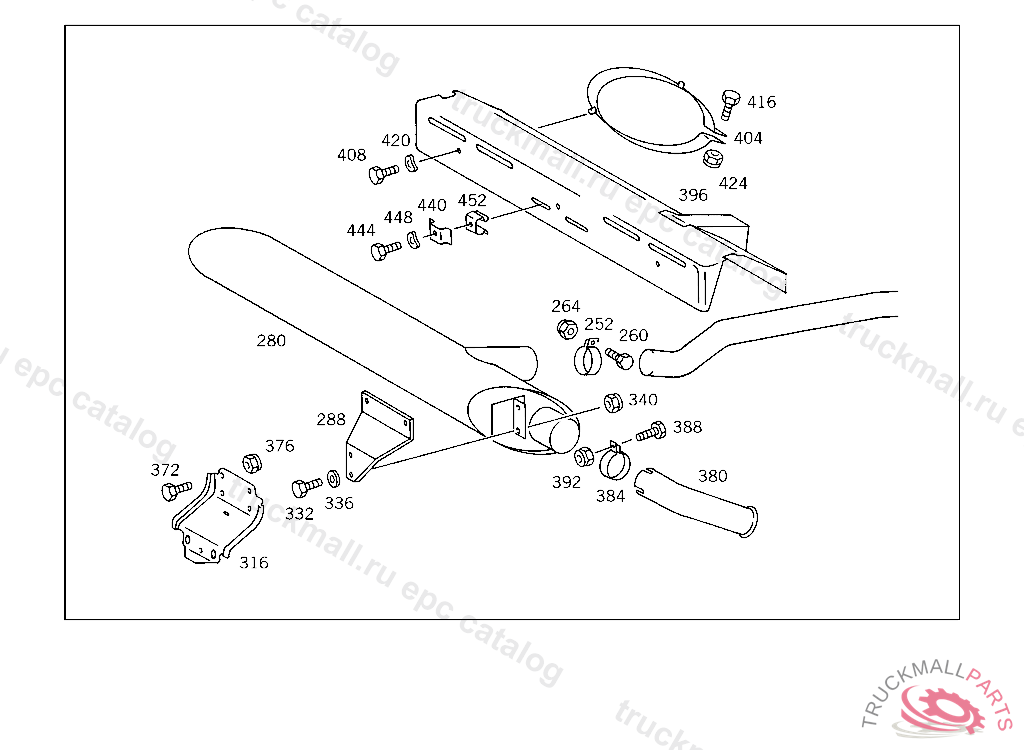

252
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
252
CLAMP , Replaced By: N071555094502
260
SCREW , Replaced By: N304017010002
260
SCREW BRACKET TO SIDE MEMBER
264
NUT , Replaced By: N910113010000
280
EXHAUST MUFFLER
288
BRACKET EXHAUST MUFFLER,LEFT,5 381621
288
BRACKET EXHAUST MUFFLER,RIGHT
316
REINFORCEMENT ,5 381621
332
SCREW END PIECE TO EXHAUST PIPE M 10X25
336
WASHER RADIATOR TO RUBBER MOUNTING
336
WASHER , Replaced By: N000125010532
340
NUT , Replaced By: N910113010000
372
SCREW END PIECE TO EXHAUST PIPE M 10X25
376
NUT , Replaced By: N910113010000
380
REAR EXHAUST PIPE TAIL PIPE
384
CLAMP , Replaced By: N071555090502
388
SCREW BRACKET TO SIDE MEMBER
388
SCREW , Replaced By: N304017010002
392
NUT , Replaced By: N910113010000
396
PROTECTIVE PLATE EXHAUST MUFFLER,5 004844
404
CLAMP PROTECTIVE PLATE TO EXHAUST MUFFLER
404
CLAMP PROTECTIVE PLATE TO EXHAUST MUFFLER
408
SCREW , Replaced By: N304017008008
416
SCREW , Replaced By: N304017010002
416
SCREW BRACKET TO SIDE MEMBER
420
SPRING WASHER , Replaced By: N000137008212
424
NUT , Replaced By: N910113010000
440
BRACKET LICENSE PLATE
444
SCREW , Replaced By: N304017006020
448
SPRING WASHER LICENSE PLATE TO BRACKET
452
NUT RETAINER , Replaced By: A0009902291
452
NUT RETAINER , Replaced By: A0019906791
