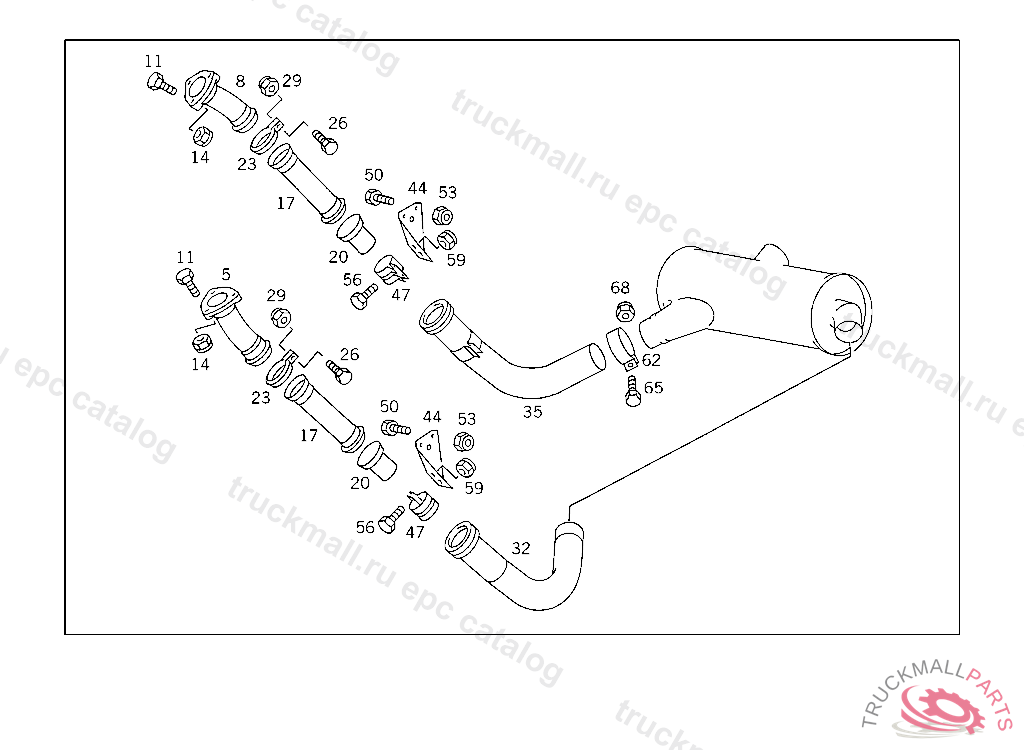

Поз.
Артикул
Описание
5
CONNECTOR LEFT FRONT
8
CONNECTOR RIGHT FRONT
11
SCREW CONNECTOR TO EXHAUST MANIFOLD
14
NUT CONNECTOR TO EXHAUST MANIFOLD
17
FLEXIBLE METAL TUBE CONNECTOR
20
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
23
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
26
SCREW BRACKET TO FRAME M 8X35
29
NUT BRACKET TO BRACKET
32
EXHAUST PIPE FRONT,REAR LEFT PART,5 1292455 193594
35
EXHAUST PIPE FRONT,REAR RIGHT PART,5 1292455 193594
44
BRACKET RIGHT EXHAUST PIPE
44
BRACKET LEFT EXHAUST PIPE
47
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
50
SCREW , Replaced By: N910105010011
53
NUT EXHAUST PIPE TO SIDE MEMBER
56
SCREW EXHAUST PIPE TO SIDE MEMBER
59
NUT EXHAUST PIPE TO SIDE MEMBER
62
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
62
CLAMP , Replaced By: N071555094502
65
SCREW EXHAUST PIPE TO SIDE MEMBER
68
NUT EXHAUST PIPE TO SIDE MEMBER
999
WASHER , Replaced By: N000125008443
