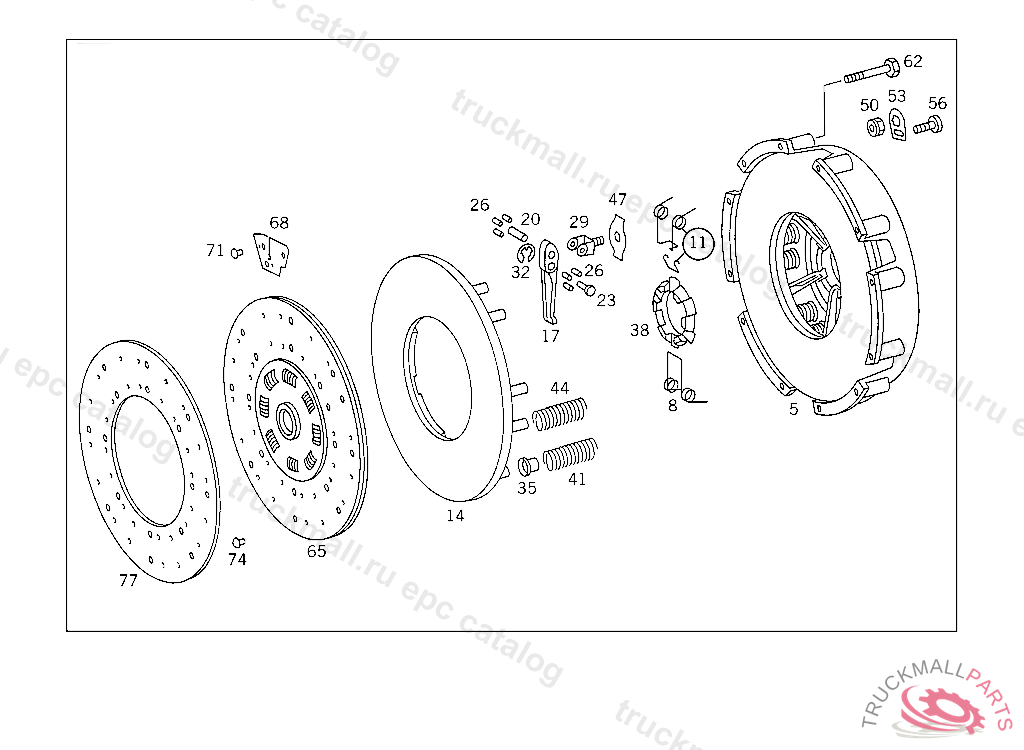

Поз.
Артикул
Описание
5
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
SPRING SUSPENDED BELOW LEAF SPRING
8
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
11
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
11
SPRING SUSPENDED BELOW LEAF SPRING
14
PRESSURE PLATE CLUTCH PRESSURE PLATE
17
RELEASE LEVER CLUTCH ACTUATION
20
SPINDLE RELEASE LEVER,CLUTCH PRESSURE PLATE
23
SPINDLE FOR BRACKETS
26
ROLLER FOR BEDDING THE LEVERS IN BRACKETS
29
BRACKET FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
32
LOCK PLATE RELEASE LEVER TO SHAFT
35
SLEEVE CLUTCH PRESSURE PLATE
38
FLANGE CLUTCH PRESSURE PLATE
41
PRESSURE SPRING SPRING STEEL WIRE DIA., 3.75 MM
44
PRESSURE SPRING SPRING STEEL WIRE DIA., 4.00 MM
47
LEAF SPRING THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
47
LEAF SPRING THIGH SPRING SUSPENDED BELOW LEAF SPRING
50
NUT FOR BRACKETS
53
LOCK FOR BRACKETS
56
SCREW RELEASE LEVER,BRACKET
62
SCREW. HEXAGON HEAD BOLT TRANSMISSION CASE M10X80
65
CLUTCH DISC
65
CLUTCH DISC
65
CLUTCH DISC ASBESTOS-FREE LINING
65
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
68
LEAF SPRING
71
RIVET LEAF SPRING TO CLUTCH DISC
74
RIVET , Replaced By: A0002524875
77
CLUTCH LINING , Replaced By: A0022520010
77
CLUTCH LINING , Replaced By: A0012528310
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
