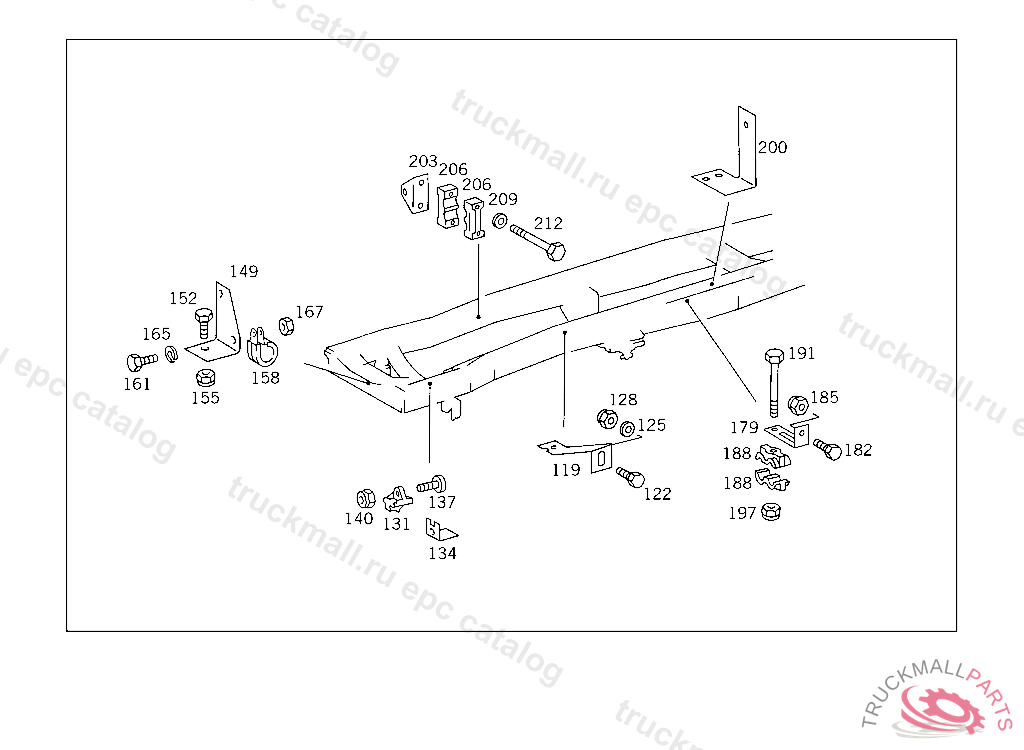

Поз.
Артикул
Описание
119
BRACKET ELECTRIC CABLE TO FRAME SIDE MEMBER,5 259747
122
SCREW BRACKET TO CROSS CONNECTION STRUT
122
SCREW , Replaced By: N304017008034
125
WASHER , Replaced By: N000125008443
128
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
128
NUT , Replaced By: N913004008001
131
BRACKET CABLE HARNESS MOUNTING
134
BRACKET , Replaced By: A6205463543
134
BRACKET CABLE HARNESS MOUNTING
137
SCREW ELECTRIC CABLE TO PIPE BEND
140
NUT CONTROL UNIT TO APPARATUS PANEL
149
BRACKET FRAME MOUNTED CABLE HARNESS
152
SCREW , Replaced By: N910143008002
152
SCREW , Replaced By: N910142008001
155
NUT BRACKET TO BRACKET
158
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
161
SCREW AT FILTER BRACKET
165
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
167
NUT BALL SOCKET TO ROD
179
BRACKET , Replaced By: A3184280240
182
SCREW PUMP TO FRAME SIDE MEMBER M 8X40
185
NUT BRACKET TO BRACKET
188
CLAMPING PIECE BATTERY CABLE MOUNTING
191
SCREW ELECTRIC CABLE TO BRACKET
197
NUT AT FILTER BRACKET
200
BRACKET LINES TO ENGINE
203
BRACKET FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BELL HOUSING
206
CLAMPING PIECE BATTERY CABLE TO FRAME SIDE MEMBER NEAR TRANSMISSION
209
WASHER , Replaced By: N000125010532
209
WASHER RADIATOR TO RUBBER MOUNTING
212
SCREW ELECTRIC CABLE TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
ELECTRIC CABLE ROOF
