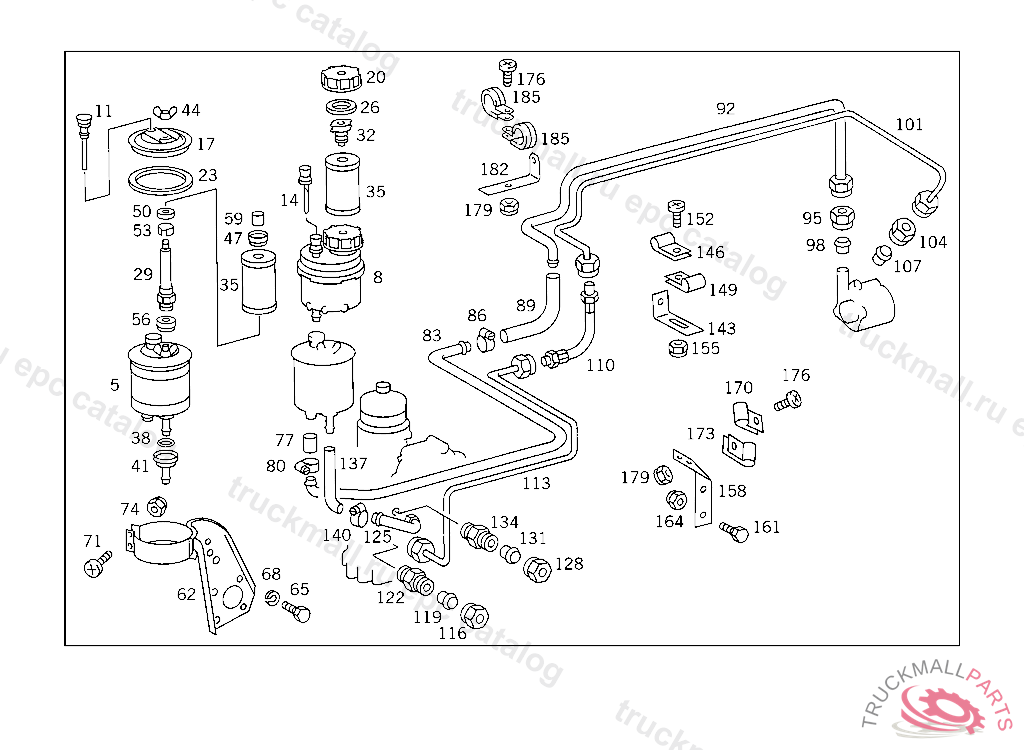

Поз.
Артикул
Описание
5
TANK , Replaced By: A0004664502
8
TANK OIL
11
PIPETO 000 466 38 02
14
OIL DIPSTICK
14
OIL DIPSTICK , Replaced By: A0004660867
17
COVERTO 000 466 38 02
20
FILLER CAP
23
SEAL RINGTO 000 466 38 02
26
SEAL RING
29
FILTER CARRIERTO 000 466 38 02
32
BRACKET
35
FILTER
38
SEAL RINGTO 000 466 38 02
41
CONNECTORTO 000 466 38 02
44
NUTTO 000 466 38 02
47
CENTERING RINGTO 000 466 38 02
50
WASHER , Replaced By: A9402680552
53
SPACER TUBETO 000 466 38 02
56
COVER PLATETO 000 466 38 02
59
RUBBER SLEEVETO 000 466 38 02
62
BRACKET OIL TANK
65
SCREW RIGHT SUPPORT TO RADIATOR,K 142907
68
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
71
SCREW OIL TANK TO BRACKET
74
NUT AT FILTER BRACKET
77
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
80
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
80
CLAMP , Replaced By: N000000000667
83
LINE , NOT USED
86
CLAMP , Replaced By: N000000000667
86
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
89
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
92
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
95
UNION NUT LINE CONNECTION, Replaced By: N000000006243
98
GLAND , Replaced By: A0019901267
101
LINE FROM POWER STEERING PUMP TO HOSE
104
UNION NUT LINE CONNECTION, Replaced By: N000000006239
107
SEAL CONE LINE CONNECTION
107
GLAND , Replaced By: A0019901967
110
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
110
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
110
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
113
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
116
UNION NUT LINE CONNECTION, Replaced By: N000000006239
119
SEAL CONE LINE CONNECTION
119
GLAND , Replaced By: A0019901967
122
SCREW-IN FITTING , Replaced By: A0029971572
122
SCREW-IN FITTING FUEL FEED,AT WATER SEPARATOR
122
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
122
FITTING DELIVERY LINE TO PUMP
125
LINE RETURN, FROM STEERING TO OIL TANK,5 593344
128
UNION NUT LINE CONNECTION
131
GLAND LINE CONNECTION
134
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
137
HOSE , Replaced By: A6999974082
137
HOSE , NOT USED
140
CLAMP HOSE TO FITTING AND TO OIL TANK
140
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
143
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
146
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
149
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
152
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
155
NUT AT FILTER BRACKET
158
BRACKET , Replaced By: A6564660040
158
BRACKET DELIVERY AND SUCTION LINES TO FRAME
161
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
161
SCREW STRUT TO FRAME, RIGHT
164
NUT STRAP TO SUPPORT
170
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
173
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
176
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
179
NUT AT FILTER BRACKET
182
BRACKET , Replaced By: A6205244040
185
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
185
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
