Mercedes A0005010110 - Шланг

2628 K OTOMARSAN/TUERKEI 371.359

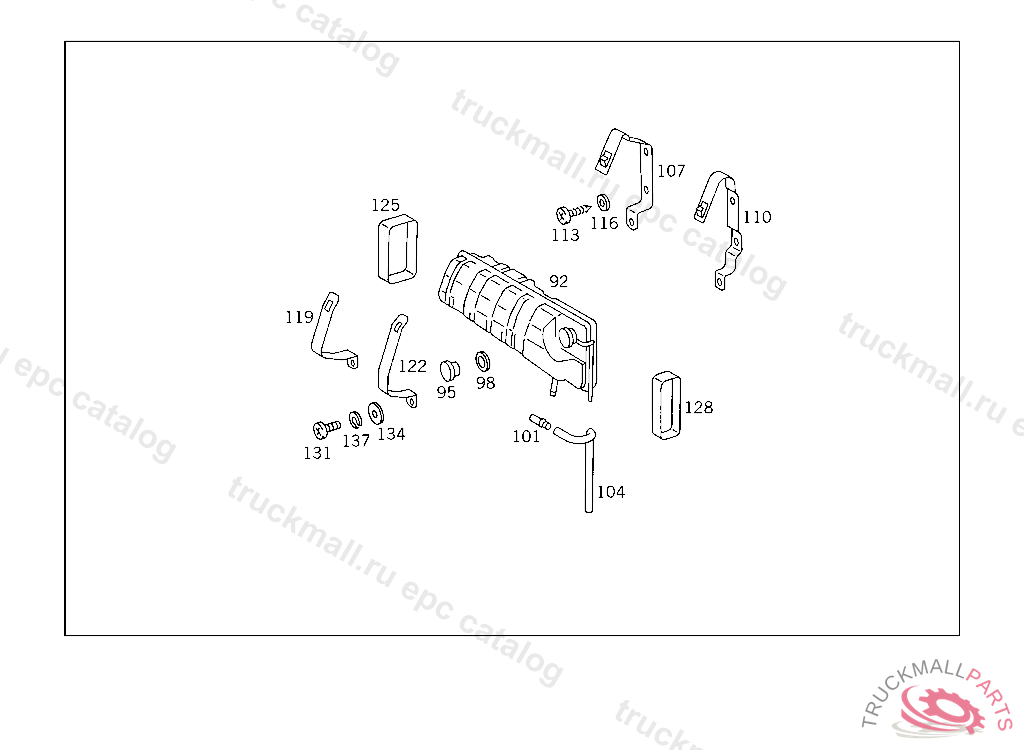

50 RADIATOR - 060 RADIATOR AND EXPANSION TANK IL. 2

Поз.
Артикул
Описание
92
A6205000149
TANK (EXPANSION TANK)
95
A0005014515
RADIATOR CAP
98
A0005010880
GASKET O.D., 37 MM
101
A0005010110
DRAIN PIPE EXPANSION TANK
104
A0139978682
HOSE OVERFLOW
107
A6205000031
BRACKET EXPANSION TANK
110
A6205000131
BRACKET EXPANSION TANK
110
A3715007131
BRACKET EXPANSION TANK,LEFT
113
N007981005306
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
116
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
119
A6205010320
STRAP EXPANSION TANK TO BRACKET
122
A6205010420
STRAP EXPANSION TANK TO BRACKET
125
A6205010195
SHIM EXPANSION TANK TO BRACKET
128
A6205010295
SHIM EXPANSION TANK TO BRACKET
131
N007985006193
SCREW , Replaced By: N000000001146
134
N009021006205
WASHER , Replaced By: N009021006208
137
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
