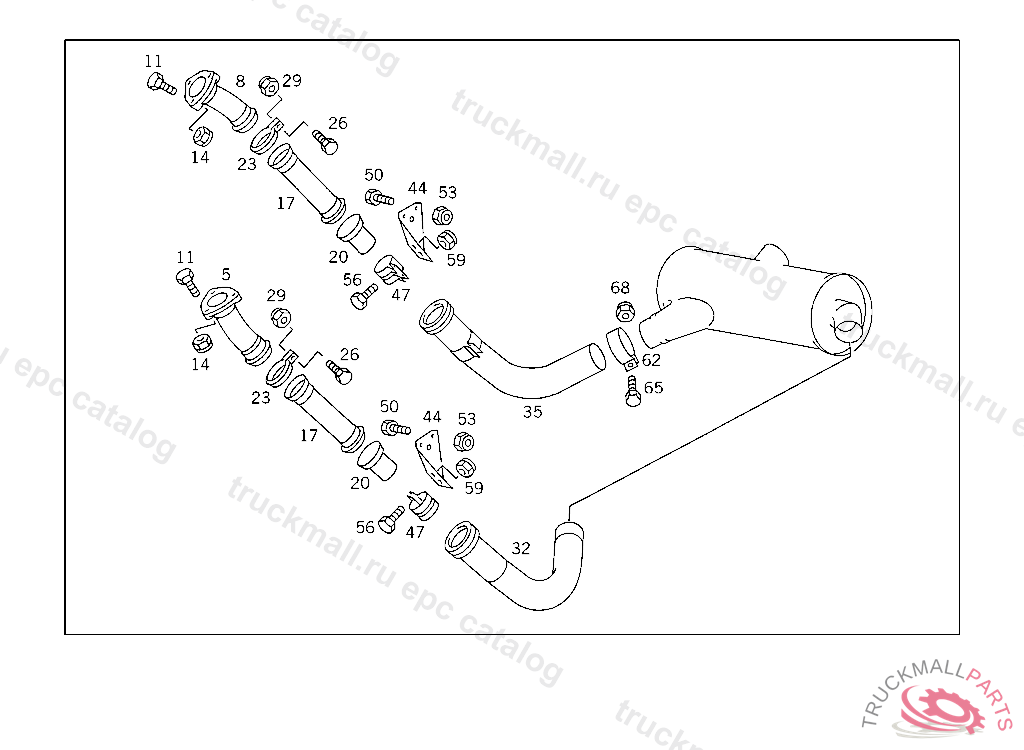

Поз.
Артикул
Описание
5
CONNECTOR LEFT FRONT
8
CONNECTOR RIGHT FRONT
11
SCREW CONNECTOR TO EXHAUST MANIFOLD
14
NUT CONNECTOR TO EXHAUST MANIFOLD
17
FLEXIBLE METAL TUBE CONNECTOR
20
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
23
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
26
SCREW BRACKET TO FRAME M 8X35
29
NUT BRACKET TO BRACKET
44
BRACKET RIGHT EXHAUST PIPE
44
BRACKET LEFT EXHAUST PIPE
47
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
50
SCREW , Replaced By: N910105010011
53
NUT EXHAUST PIPE TO SIDE MEMBER
56
SCREW REAR EXHAUST PIPE TO MUFFLER
59
NUT EXHAUST PIPE TO SIDE MEMBER
62
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
65
SCREW EXHAUST PIPE TO SIDE MEMBER
68
NUT EXHAUST PIPE TO SIDE MEMBER
