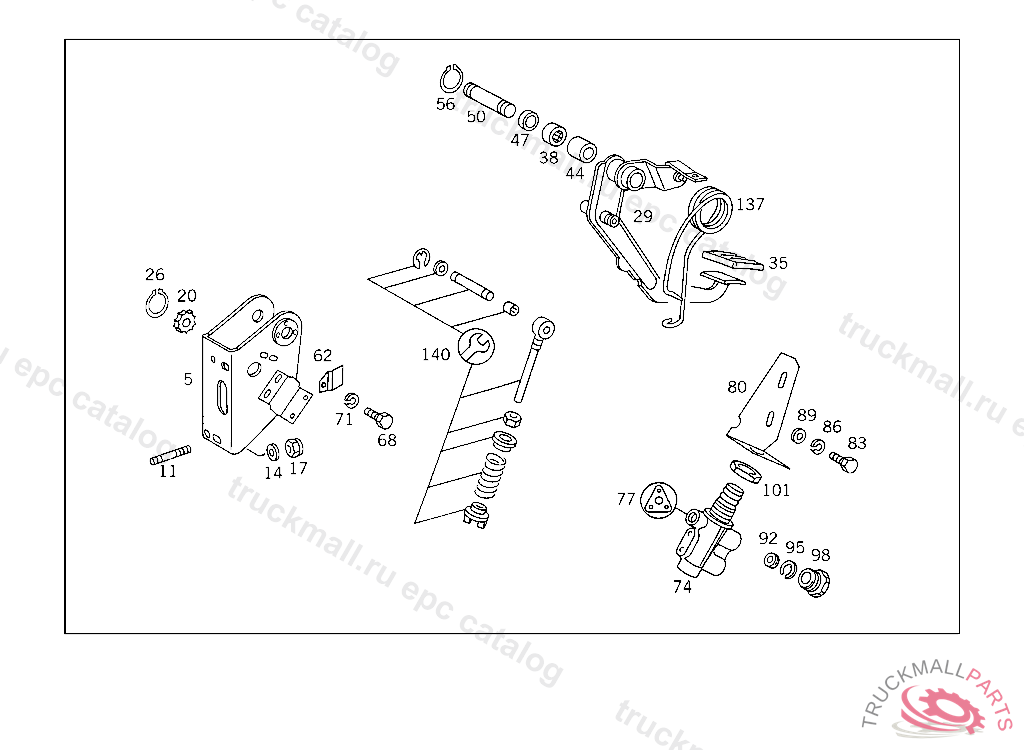

Поз.
Артикул
Описание
5
BEARING BRACKET CLUTCH, IN CASE OF PEDAL BEARING BRACKET WITH SHIMS,DELIVER ADDITIONALLY: 3X 000939 008136,1X 620 290 03 34 UP TO IDENT NO. 5 238024, SEE SERVICE INFORMATION 29/4
11
STUD BOLT BRACKET TO CROSS MEMBER
17
NUT BRACKET TO BRACKET
20
STOP PEDAL ASSEMBLY
26
LOCK RING , Replaced By: A0079942041
29
PEDAL CLUTCH,5 238025
35
PAD BRAKE
38
NEEDLE BEARING
44
SPACER TUBE CLUTCH PEDAL
47
WASHER CLUTCH PEDAL TO BEARING BRACKET
50
PIVOT PIN PEDAL TO BEARING BRACKET
56
LOCK RING
62
LOCK PEDAL TO BEARING BRACKET
68
SCREW , Replaced By: N304017006016
71
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
74
VALVE 3/2-WAY VALVE
77
GASKET KIT 3/2-WAY VALVE
80
BRACKET 3/2-WAY VALVE TO PEDAL BEARING BRACKET
83
SCREW , Replaced By: N910105006023
86
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
89
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
92
SEAL RING , Replaced By: A0009940747
92
LOCK RING LINE CONNECTION
95
LOCK , Replaced By: A0009945448
95
LOCK LINE CONNECTION
98
SCREW. UNION SCREW , Replaced By: A0009973734
98
SCREW. UNION SCREW LINE CONNECTION
98
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16, VOSS 232
101
NUT SUCTION LINE TO OIL PUMP
137
SPRING CLUTCH PEDAL RESET
140
REPAIR KIT DEAD CENTER SPRING
999
WASHER , Replaced By: N000125008443
