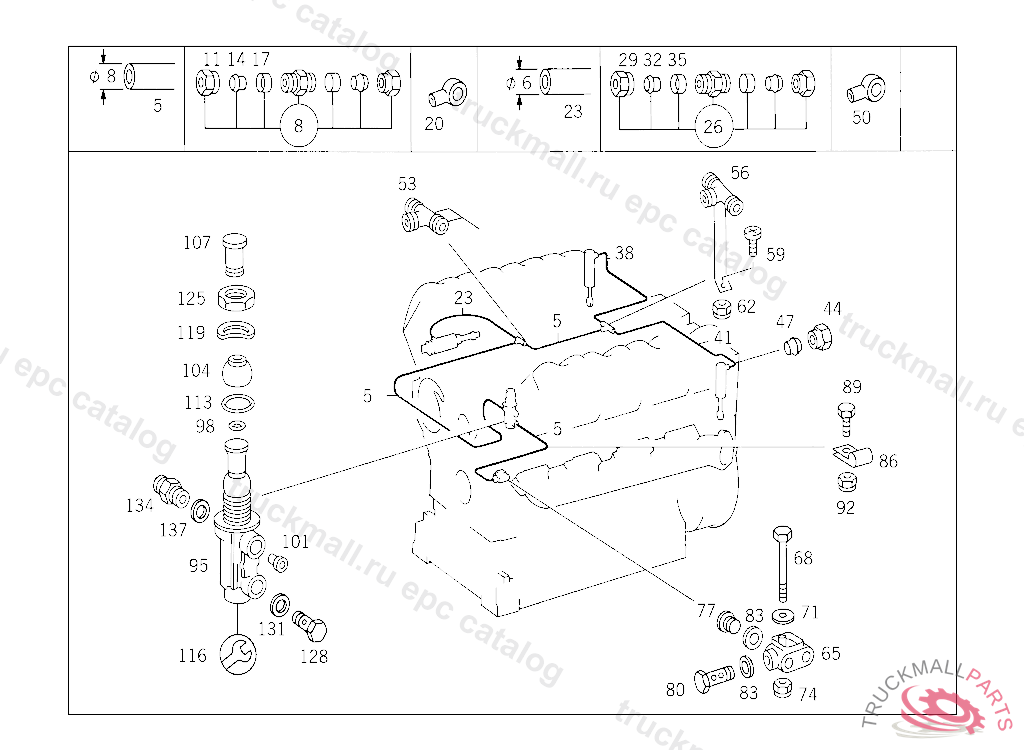

Поз.
Артикул
Описание
5
PLASTIC PIPE AERATION, ORDER BY THE METER
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
FITTING (PARTS KIT),LINE RUPTURE
11
UNION NUT LINE CONNECTION
14
GLAND LINE CONNECTION
17
SLEEVE LINE CONNECTION
20
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
23
PLASTIC PIPE RISING PIPE 4X6 MM
23
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
26
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
29
UNION NUT
32
SEAL CONE
32
GLAND , Replaced By: A0019901667
35
SLEEVE LEAK LINE
38
LINE FROM T-FITTING TO EXHAUST BRAKE CYLINDER,RIGHT
41
LINE FROM T-FITTING TO EXHAUST BRAKE CYLINDER,LEFT
44
UNION NUT
47
SEAL CONE
47
GLAND , Replaced By: A0019901667
50
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
50
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
53
BRACKET (T-FITTING) EXHAUST BRAKE LINE CONNECTION
56
BRACKET COMPRESSED AIR LINE TO INTAKE MANIFOLD, LEFT FRONT
59
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
62
NUT AT FILTER BRACKET
65
DISTRIBUTOR EXHAUST BRAKE VALVE LINE CONNECTION
68
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X50
71
WASHER , Replaced By: N009021006208
74
NUT AT FILTER BRACKET
77
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
80
HOLLOW SCREW HEATING CONNECTION
80
HOLLOW SCREW LINE CONNECTION
83
SEAL RING LINE CONNECTION
86
CLAMP LINE MOUNTING
86
CLAMP LINE MOUNTING
89
SCREW AT FILTER BRACKET
92
NUT AT FILTER BRACKET
95
VALVE EXHAUST BRAKE OPERATING MECHANISM
95
VALVE EXHAUST BRAKE OPERATING MECHANISM BOSCH
95
VALVE EXHAUST BRAKE OPERATING MECHANISM WESTINGHOUSE
98
SEAL RINGTO 000 434 21 01
101
STRAINERTO 000 434 21 01
101
CLEANERTO 000 434 22 01
104
CUPTO 371 434 72 01
104
CUP 3/2-WAY VALVE WABCO
107
HANDLETO 000 434 23 01
113
SEAL RINGTO 000 434 23 01
116
REPAIR KIT 3/2-WAY VALVE BOSCH
116
REPAIR KIT 3/2-WAY VALVE WABCO
119
SPRING WASHER AT CAB FLOOR
125
NUT SUCTION LINE TO OIL PUMP
128
HOLLOW SCREW HEATING CONNECTION
131
SEAL RING LINE CONNECTION
134
FITTING LINE CONNECTION, Replaced By: N000000006446
137
SEAL RING LINE CONNECTION
