Поз.
Артикул
Описание

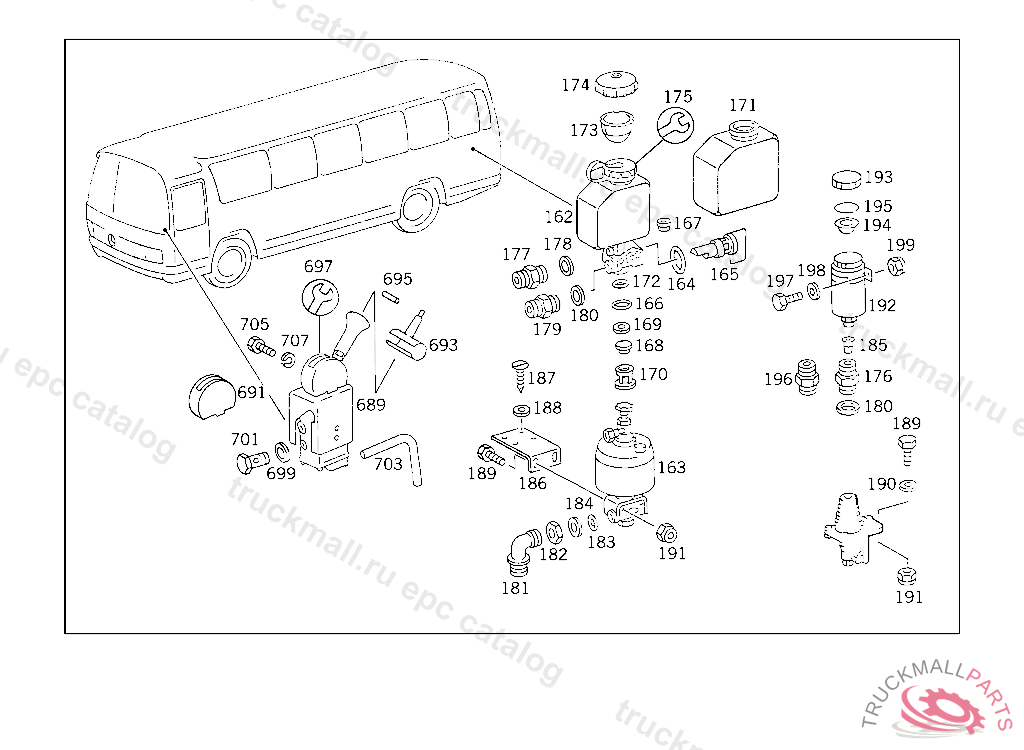

163
ANTI-FREEZE DEVICE
164
SEAL RING101
164
SEAL RING , Replaced By: A0179974148
165
ACTUATING PART
166
SEAL RING
167
SEAL RING
168
VALVE DISC
169
SEAL RING , Replaced By: A0029971640
169
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
170
STRAINER
171
RESERVOIR
172
SEAL RING
173
STRAINER
174
FILLER CAP
175
REPAIR KIT 3/2-WAY VALVE
179
FITTING LINE CONNECTION, Replaced By: N000000006446
180
SEAL RING LINE CONNECTION
181
ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
182
NUT CHECK VALVE TO AIR RESERVOIR
183
O-RING CHECK VALVE TO AIR RESERVOIR
184
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
186
BRACKET ANTI-FREEZE DEVICE, ON VEHICLES HAVING MERCEDES-BENZ BODY FROM CHASSIS 035942 ON VEHICLES HAVING NO MERCEDES-BENZ BODY FROM CHASSIS 035887
187
SHEET METAL SCREW LINE MOUNTING
188
WASHER BOOT TO CAB FLOOR
188
WASHER , Replaced By: N000433005304
189
SCREW CONTROL VALVE TO CROSS MEMBER M 8X80
190
WASHER , Replaced By: N000125008443
191
NUT , Replaced By: N913004008001
191
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
689
VALVE (PARKING BRAKE VALVE)
691
PROTECTIVE CAPTO WABCO
693
VALVE. REPAIR KIT HAND BRAKE LEVER TO 001 430 65 81
693
LEVER , Replaced By: A0034302881
695
PINTO 002 430 90 81
697
REPAIR KITTO 001 430 58 81/59 81,WABCO, WITH HAND BRAKE VALVE ON ENGINE TUNNEL, FROM IDENT NO. SEE MF 26032
697
REPAIR KIT , Replaced By: A0034303381
699
SEAL RING FUEL LINE TO FEED PUMP
701
HOLLOW SCREW , Replaced By: N915036010108
703
HOSE BLEEDING, USED WITH AIR BRAKE FROM CHASSIS 209476 ALSO INSTALLED ON 209273,209446,209461,209465,209471,209474.
703
HOSETO 346 500 60 03, ORDER BY THE METER
705
SCREW SWITCH TO BRACKET 8X16
705
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
707
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
VALVE , Replaced By: A0004322407
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
999
LINE FROM AIR COMPRESSOR TO COMPRESSED AIR HOSE, USED WITH HYDRAULIC BRAKE UP TO CHASSIS 209475 EXCEPT FOR 209273,209446,209461,209465,209471,209474.
999
999
999
LINE FROM CONNECTOR I TO CONNECTOR II, ONLY APPLICABLE FOR TURKEY
999
LINE FROM CONNECTOR II TO CONNECTOR III, ONLY APPLICABLE FOR TURKEY
999
LINE FROM CONNECTION TO 3/2-WAY SOLENOID VALVE, ONLY APPLICABLE FOR TURKEY
999
LINE FROM CONNECTOR I TO CONNECTOR II, ONLY APPLICABLE FOR TURKEY
999
LINE CONNECTOR,WET AIR RESERVOIR NO.4
999
999
999
999
LINE FROM AIR RESERVOIR TO TWO-CIRCUIT BRAKE VALVE,CONNECTION: 1B/10L - "12"
999
999
LINE FROM TWO-CIRCUIT BRAKE VALVE TO CONNECTOR I
999
999
999
999
999
999
LINE FROM AIR RESERVOIR TO AIR RESERVOIR 1/10L-1B/10L
999
LINE FROM CONNECTOR I TO CONNECTOR II
999
LINE FROM CONNECTOR TO TEST CONNECTION NO.3
999
LINE LEFT,DIAPHRAGM CYLINDER
999
999
999
LINE FROM T-FITTING TO CONNECTOR
999
999
LINE FROM CONNECTOR TO RELAY VALVE, CONNECTION 1, ONLY APPLICABLE FOR TURKEY
999
LINE FROM CONNECTOR TO TWO-WAY VALVE, ONLY APPLICABLE FOR TURKEY
999
999
LINE FROM CONNECTOR TO TWO-WAY VALVE, ONLY APPLICABLE FOR TURKEY
999
LINE FROM AIR RESERVOIR TO T-FITTING, USED WITH AIR BRAKE FROM CHASSIS 209476 ALSO INSTALLED ON 209273,209446,209461,209465,209471,209474.
999
LINE CHECK VALVE AT FOUR-CIRCUIT PROTECTIVE VALVE
999
LINE FROM CONNECTOR TO DIAPHRAGM CYLINDER, ONLY APPLICABLE FOR TURKEY
999
LINE FROM CONNECTOR TO DIAPHRAGM CYLINDER, ONLY APPLICABLE FOR TURKEY
999
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO T-FITTING
999
LINE FROM TEST CONNECTION TO T-FITTING, ONLY APPLICABLE FOR TURKEY
999
LINE FROM RESERVOIR TO PUMP
999
LINE FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22" R 25
999
LINE FROM AIR RESERVOIR TO TEST CONNECTION 1/20 L
999
LINE FROM T-FITTING TO CONNECTOR 1, USED WITH AIR BRAKE FROM CHASSIS 209476 ALSO INSTALLED ON 209273,209446,209461,209465,209471,209474.
999
LINE FROM CONNECTOR TO RELAY VALVE, ONLY APPLICABLE FOR TURKEY
999
LINE FROM 3/2-WAY VALVE TO COMPRESSED AIR HOSE, ONLY APPLICABLE FOR TURKEY
999
LINE FROM LEFT BRAKE CYLINDER TO RIGHT BRAKE CYLINDER, ONLY APPLICABLE FOR TURKEY
999
LINE FROM T-FITTING TO DRAIN VALVE, USED WITH AIR BRAKE FROM CHASSIS 209476 ALSO INSTALLED ON 209273,209446,209461,209465,209471,209474.
999
LINE FROM DRAIN VALVE TO WET AIR RESERVOIR, USED WITH AIR BRAKE FROM CHASSIS 209476 ALSO INSTALLED ON 209273,209446,209461,209465,209471,209474.
999
999
999
LINE FROM IN-LINE FILTER TO FOUR-CIRCUIT PROTECTIVE VALVE, ONLY APPLICABLE FOR TURKEY
999
