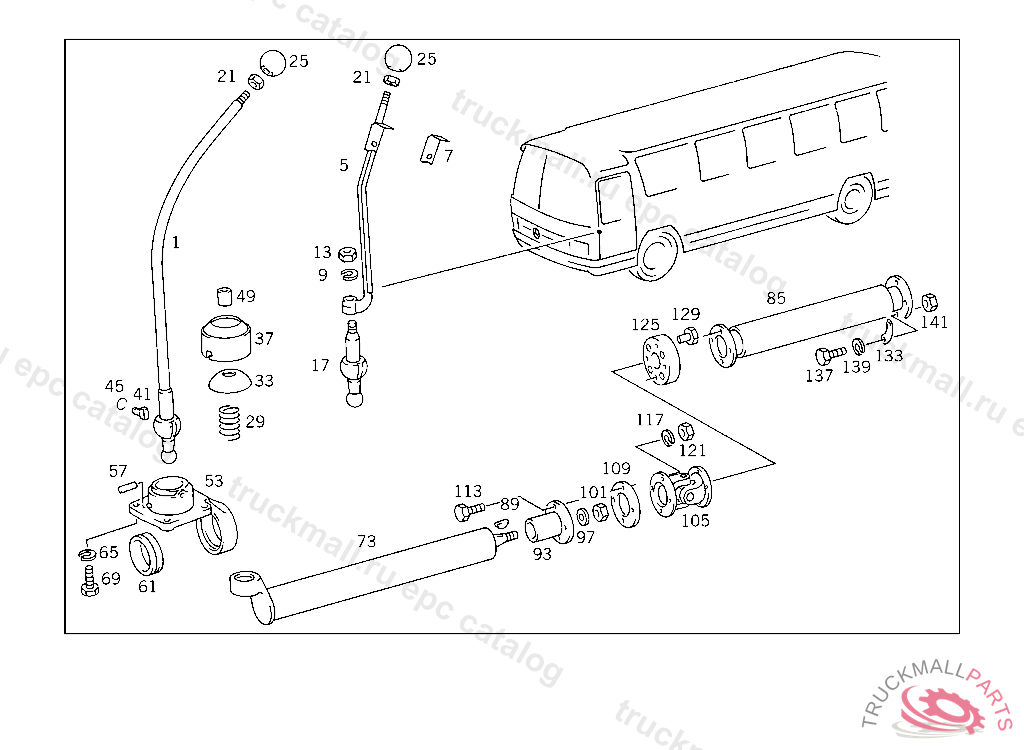

Поз.
Артикул
Описание
5
SHIFT LEVER , Replaced By: A3732600139
5
SHIFT LEVER UPPER PART
7
BRACKET
9
LOCK WASHER CONSOLE TO SUPPORT
13
NUT STRAP TO SUPPORT,5 149419
17
SHIFT LEVER LOWER PART
21
NUT
25
HANDLE (GEARSHIFT LEVER KNOB)
29
SPRING SHIFT LEVER TO CASE
33
SPHERICAL PIECE GEARSHIFT LEVER LOWER PART,D 203092
37
COVER
41
SLIDING BLOCK , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
45
SNAP RING
49
HOSE
53
SHIFT CASE
57
GROOVED PIN
61
BUSHING SHIFTING TUBE
61
BUSHING
61
BUSHING , Replaced By: A3572680150
65
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
69
SCREW BRACKET TO CROSS CONNECTION STRUT
69
SCREW MOUNTING CLAMP TO BRACKET AND TO FRAME
73
SHIFTING ROD FRONT
85
SHIFTING ROD BEHIND REAR AXLE
89
WOODRUFF KEY STEERING WHEEL TO STEERING COLUMN
93
CONNECTOR FLANGE TO SHIFTING TUBE
97
LOCK WASHER CONSOLE TO SUPPORT
101
NUT STRAP TO SUPPORT
105
JOINT FRONT SHIFTING ROD TO SHIFTING ROD ABOVE FRONR AXLE
105
JOINT FRONT SHIFTING ROD TO SHIFTING ROD ABOVE FRONR AXLE
105
JOINT
105
JOINT SHIFTING ROD TO SHIFTING ROD
105
JOINT SHIFTING ROD TO SHIFTING ROD
109
SPACER WASHER5 MM
109
SPACER WASHER3 MM
109
SPACER WASHER2 MM
113
SCREW SHIFTING TUBE TO TRANSMISSION
117
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
121
NUT , Replaced By: N304032008006
125
CONNECTOR FRONT SHIFTING ROD TO REAR SHIFTING ROD
129
BUSHING
133
LOCK FRONT SHIFTING ROD TO REAR SHIFTING ROD
137
SCREW SHIFTING ROD TO TRANSMISSION
139
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
141
NUT , Replaced By: N304032008006
