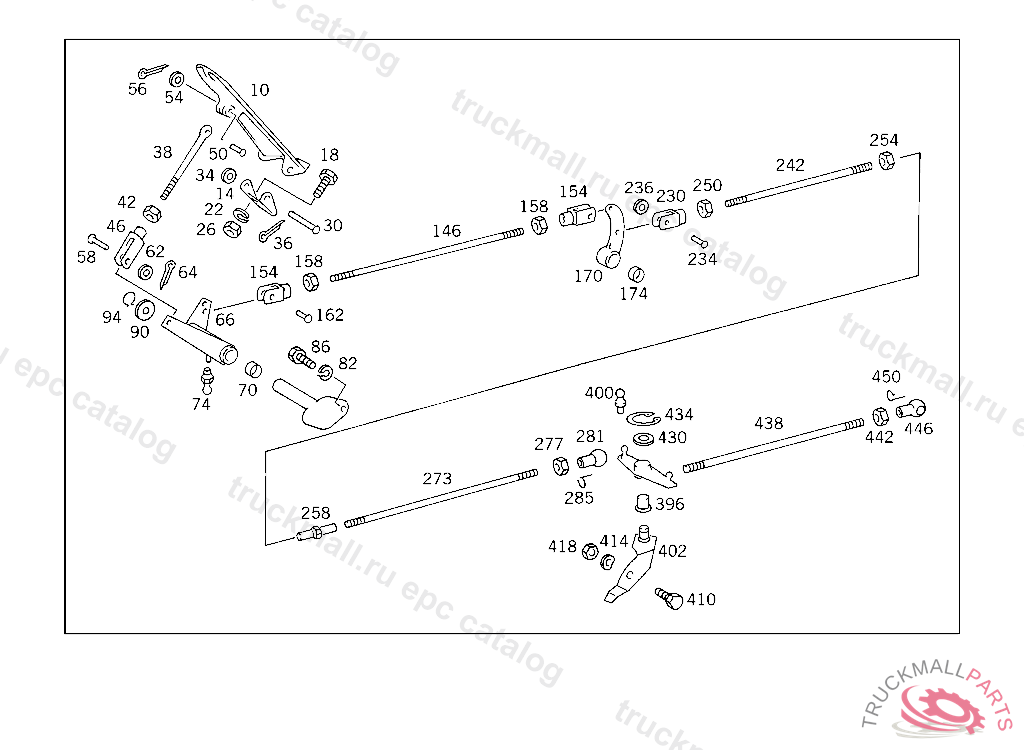

Поз.
Артикул
Описание
10
PEDAL PLATE , Replaced By: A3073010002
14
ARTICULATION PIECE ACCELERATOR PEDAL
18
22
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
26
NUT , Replaced By: N304032008006
30
PIN ACCELERATOR PEDAL TO JOINT
34
WASHER RADIATOR TO RUBBER MOUNTING
34
WASHER , Replaced By: N000125010532
36
COTTER PIN STRAP TO BRACKET
38
42
NUT SPRING-LOADED PUSH ROD
42
NUT BALL PIVOT TO LEVER
46
YOKE OPERATING ROD TO BRACKET
50
PIN ROD TO PEDAL PLATE
54
WASHER LINE TO CROSS AND SIDE MEMBERS
56
COTTER PIN ROLLER TO LEVER
58
62
WASHER LINE TO CROSS AND SIDE MEMBERS
64
COTTER PIN ROLLER TO LEVER
66
70
BUSHING MANUAL CONTROL,D 249954
74
GREASE NIPPLE PROTECTIVE TUBE
82
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
86
SCREW BRACKET TO REAR CROSS MEMBER
90
WASHER PEDAL BEARING
94
LOCK RING
146
154
YOKE OPERATING ROD TO BRACKET
158
NUT SPRING-LOADED PUSH ROD
158
NUT BALL PIVOT TO LEVER
162
PIN OPERATING ROD TO BRACKET
170
174
BUSHING MANUAL CONTROL,D 249954
230
YOKE OPERATING ROD TO BRACKET
234
PIN OPERATING ROD TO BRACKET
236
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
242
250
NUT BALL PIVOT TO LEVER
250
NUT SPRING-LOADED PUSH ROD
254
NUT L.H. THREAD
258
NUT FRONT SHIFTING ROD
273
277
NUT BALL PIVOT TO LEVER
277
NUT SPRING-LOADED PUSH ROD
281
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
285
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
396
BUSHING MANUAL CONTROL,D 249954
400
BALL PIVOT LEVER
402
BEARING BRACKET ,C 079749
410
SCREW RADIATOR PROTECTIVE GRILLE TO ANGLE
410
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
414
LOCK WASHER FITTING TO BRACKET
418
NUT , Replaced By: N304035012002
430
WASHER
434
LOCK RING PAWL TO HAND BRAKE LEVER
442
NUT SPRING-LOADED PUSH ROD
442
NUT BALL PIVOT TO LEVER
446
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
450
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
999
999
999
